Description

ENDURO BEAST

The new Collosus N blends race-proven performance with enduro-ready versatility. Developed with input from the EDR World Cup and Polygon Factory Racing, it’s built to tackle everything - gnarly trails, big hits, and steep climbs. With 170mm of suspension and 29" wheels, it’s the perfect bike for riders who demand it all.

REFINED FOR MORE

The updated frame now has UDH compatibility, longer chainstays for improved stability, a stiffer rear end with adjustable bolt-on dropouts to handle mixed wheel sizes. A reengineered lower link to fine tune the flex to where it needs to be, while the new metric shock allows for more shock options and better stability through the system for increased performance. Plus, a beefier 34.9mm dropper post for enhanced durability and customisation.

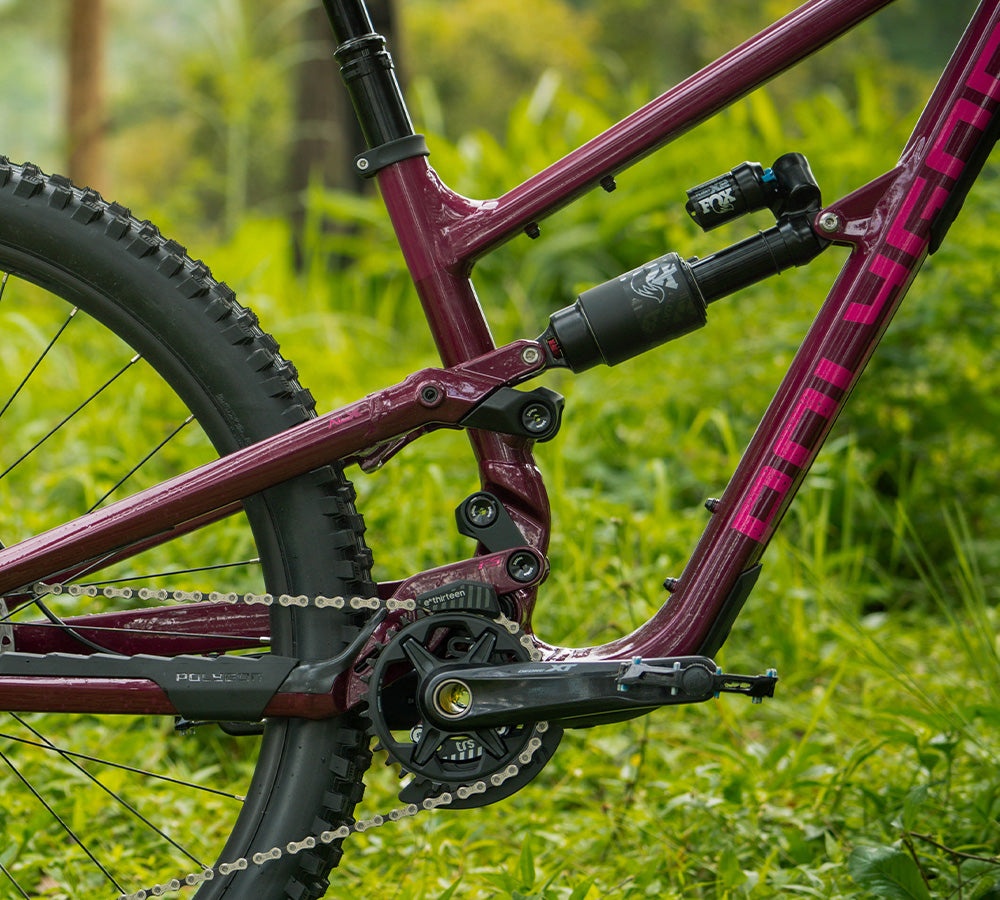

IFS LINKAGE DESIGN

Independent Floating Suspension (IFS) system provides unparalleled control and responsiveness. By independently controlling wheel path, anti-squat, and leverage curve, the IFS system delivers both plush small-bump sensitivity, efficient pedaling, and progressive bottom-out resistance.

FOX 38 FLOAT PERFORMANCE

Engineered for aggressive enduro riding, the FOX 38 FLOAT Performance delivers stiff, confident front-end support. With its GRIP damper and beefy 38mm stanchions, it stays planted through chunky rock gardens and steep chutes—keeping the ride smooth, precise, and in control at speed.

FOX FLOAT X2 REAR SHOCK

The Float X2 is built for high-speed hits and big terrain. Combining the plushness of a coil with the lightweight efficiency of an air spring, it delivers incredible damping and endless tunability—giving riders a dialed-in feel no matter how rough or fast the trail gets.

SHIMANO XT 4-PISTON BRAKES

Confident braking starts here. The Shimano XT 4-piston calipers deliver strong, consistent power with refined modulation—perfect for technical descents and fast-paced enduro lines where control is everything.

RACE FACE AEFFECT 35 COCKPIT

Designed for durability and precision, the Race Face Aeffect 35 handlebar offers a stiff, responsive platform for aggressive riding. Its 35mm diameter boosts strength and control on rugged trails, giving riders the confidence to charge harder through demanding terrain.

MAXXIS ASSEGAI TIRES

An aggressive, grippy, and incredibly predictable tire that thrives on everything from loose dust to slick roots. Its standout feature is the edge-to-edge control—those small knobs between the center and side lugs deliver smooth, consistent grip through corners, giving you confidence when things get rowdy.

Components

FRAMESET
FRAME
ALX Enduro Frame, 29", Updated IFS Suspension, 170mm Travel, Internal Dropper & Derailleur Routing, Chainstay Mounted Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs, Reinforced Lower Link, Flip Chip for Geometry Adjustment, UDH-Compatible Dropouts
HEADSET
FSA NO.57E W/ Sealed Bearing ZS 44/28.6 | ZS 56/40
SUSPENSION
FORK
Fox 38 Performance, 170mm, 110x15mm Boost, 44mm offset w/ Fender
SHOCK
Fox Float X2, 230x65mm, Air Spring, 2-Position Adjustment
DRIVETRAIN
REAR DERAILLEUR
Shimano XT RD-M8100, 12-Speed
SHIFTER
Shimano XT SL-M8100, 12-Speed
CRANK
Shimano XT FC-M8100-1, 170mm, Max Chainring: 34T
CHAINRING
32T
CASSETTE
Shimano SLX CS-M7100, 12-Speed, 10-51T, Microspline
CHAIN
KMC X12
BRAKES
FRONT BRAKE
Shimano XT M8120 4-Piston Hydraulic Brakes
REAR BRAKE
Shimano XT M8120 4-Piston Hydraulic Brakes
ROTOR
Shimano SM-RT64, 203mm
WHEELS
REAR HUB
Shimano XT FH-M8110-B Boost, 12x148mm, 32H, CL, Microspline
RIM
Polygon MT6 Alloy Double Wall, 30mm Inner Width, Tubeless Ready **
TYRE
Maxxis Assegai 29x2.5", Dual Compound, EXO, Tubeless Ready **
MAX TYRE SIZE
29x2.6"
CONTACT POINTS
HANDLEBAR
Raceface Aeffect R35, Length: 780mm, Rise: 20mm, Bar Bore: 35mm
SADDLE
Xtent, Cr-MO ø 7mm
SEATPOST
Tranz X JD-YSP23KL, 34.9mm, 150mm (S, M) / 170mm (L, XL)
STEM
Raceface Aeffect R35, Length: 40mm, Bar Bore: 35mm
PEDALS
Alloy Flat w/ Replaceable Pin
WEIGHT
BIKE WEIGHT
39.2 lbs (Size L)
ACCESSORIES
FENDER MUDGUARD
Fender for Fox 38

*Specs subject to change based on availability.

** Tubeless valves and sealant are sold separately

Geometry

Frame Size S M L XL
Rider height 5'2" - 5'6" 5'6" - 5'10" 5'10" - 6'1"  6'1" - 6'5"
Seat tube length 390 400 415 430
Seat tube angle 70 70 70 70
Effective seat tube angle 77 77 77 77
Head tube length 100 105 110 120
Head tube angle 63.5 63.5 63.5 63.5
Effective top tube 583.58 604.61 626.39 647.71
BB Height 353 353 353 353
BB offset 27 (drop) 27 (drop) 27 (drop) 27 (drop)
Chainstay length 445 445 445 445
Wheelbase 1219.94 1242.17 1266.01 1288.87
Frame reach 440 460 480 500
Frame stack 621.92 626.39 634.09 639.82
Standover height 710 716 717 720
Crank Length 170 170 170 170
Handlebar width 780 780 780 780
Dropper post length 150 150 170 170

Assembly

Get ready to hit the road with your new bike! It’ll arrive almost ready to go, but you’ll need to do a quick setup first. Don’t worry, we’ve popped all the tools you’ll need right in the box.

If you’re a bike-building pro: You’ll be done in just 10-15 minutes.
Got a knack for fixing things? Give it 15-25 minutes.
New to the DIY world? Take your time, around 30-40 minutes, and you’ll get there!

Need some visual aids? We’ve got you covered! Just click on our step-by-step video guide below for a smooth setup. Happy cycling!

Step 1

How To Unbox Your Dual Suspension MTB

Step 2

How To Setup Your Suspension

Step 3

Dial In Your Bike Fit

Step 4

Dial In Your Tyre Pressures

Step 5

Pre-Ride Check
