Description

SHIMANO 105 DRIVETRAIN

Shimano's 105, R7000 series provides riders with a supportive groupset that beginner and advanced riders utilise for precise shifting, reliability all at an amazing price point. By using a 2x11 gearing system the drivetrain has 22 speeds and can conquer any climb or descent with an efficient and effective cadence.

A TRUSTED BRAND

Polygon boasts over 30 years of experience and is known for offering high-performance bikes at competitive prices. Polygon road bikes have led to numerous national titles and even a victory at the 2023 Tour De Taiwan. With a 5-year warranty, you can trust Polygon to deliver from the factory to the track.

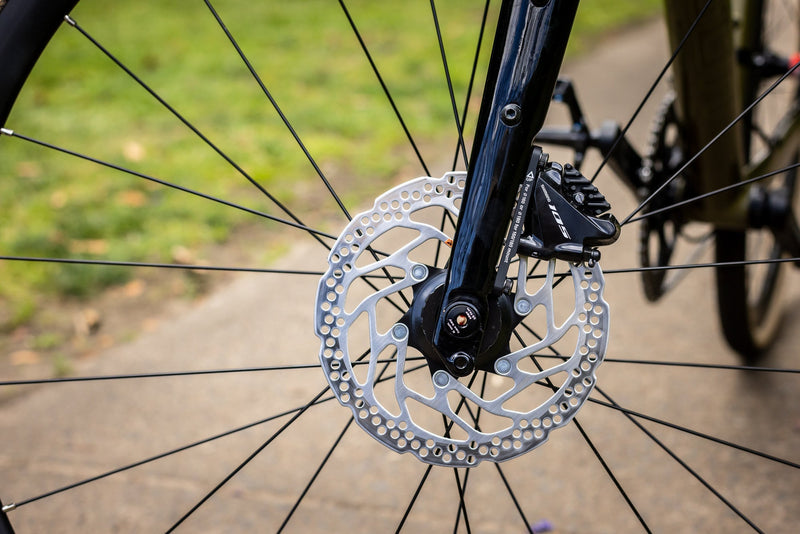

105 BRAKES

The Shimano 105 series hydraulic disc brakes offer greater rider control in all conditions. With convenient one way bleeding and an easy hose joint system, installation and adjustment are kept simple.

NIMBLE

Polygon's decision to spec a flared drop bar has resulted in a narrower body position that increases the bike's agility without compromising the bike's handling whilst on the drops. With its 420-440mm length of handlebar, it provides an extra bit of control when off-road. Accompanied by a modern chainstay and wheelbase length, Path X provides you with increased acceleration and riding efficiency.

HANDLES ALL CONDITIONS

With its full carbon fork to smooth out vibrations and reduce weight and Hydraulic Disc Brakes that provide a smooth and powerful braking experience, there is no condition that can stop you to explore more.

GRAVEL READY TIRES

The Path X’s Spec’d Vee Tires utilise a versatile tread pattern design to be used on a variety of terrain. These tires are designed to be efficient and fast on tarmac, dirt roads, pavements and gravel paths. The Path is also compatible with up to 45c gravel tires providing plenty of room for upgrades in the future.

Components

FRAMESET
FRAME

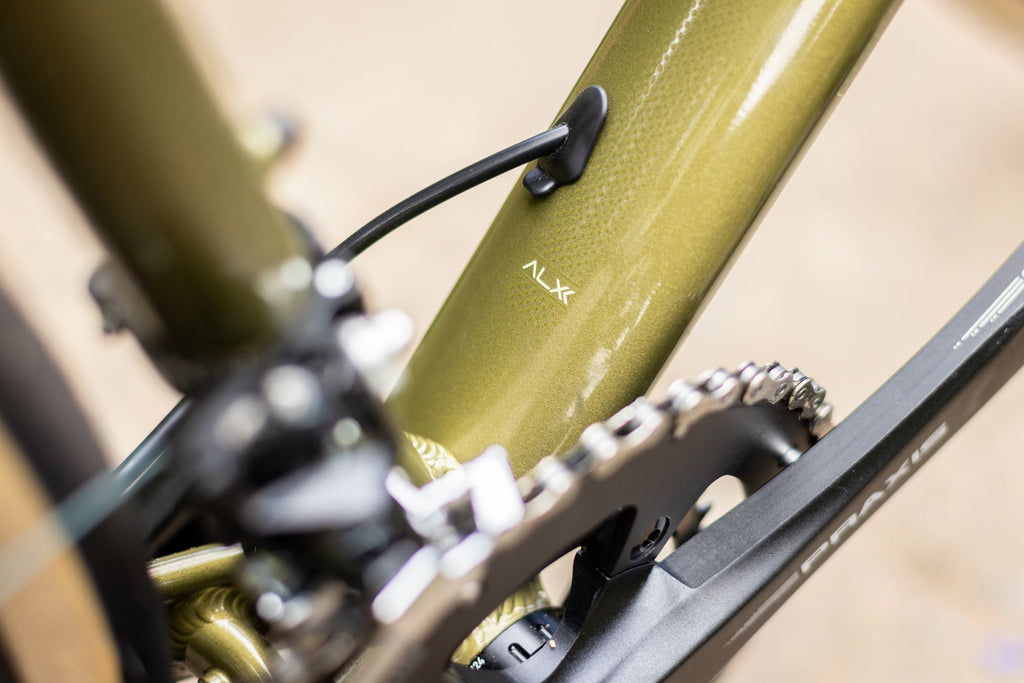

ALX Gravel
HEADSET
Integrated Headset W/ Sealed Bearing, IS 42/28.6 / IS 52/40
SUSPENSION
FORK
Carbon Rigid, Full Carbon (15kg Load Capactiy)
DRIVETRAIN
REAR DERAILLEUR
Shimano 105 RD-R7000 SS, 11-Speed

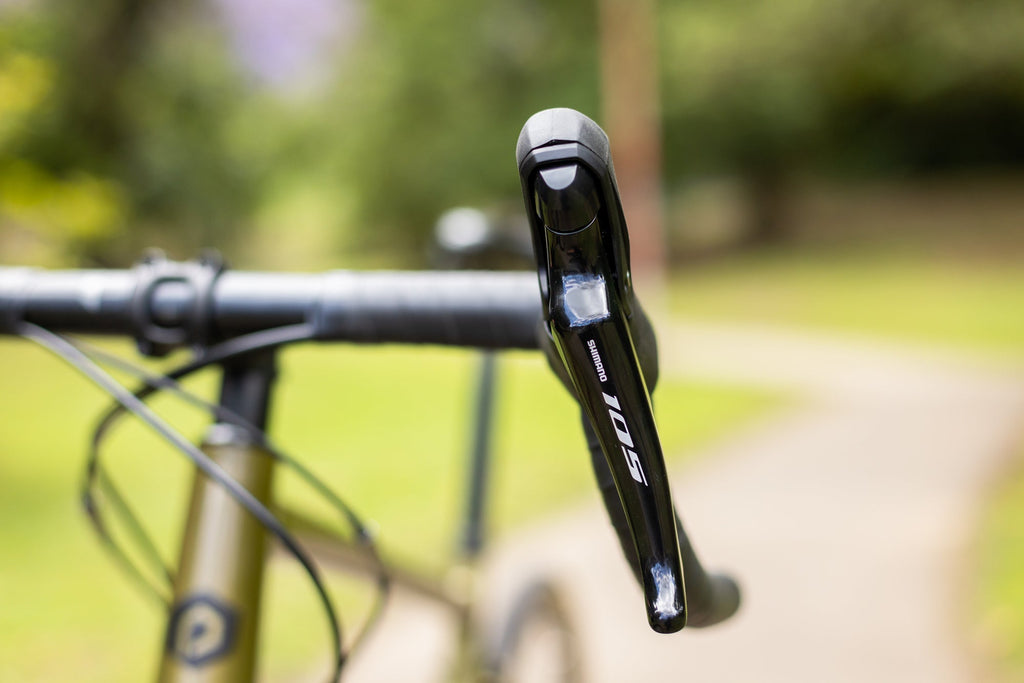

SHIFTER
Shimano 105 ST-R7020, 2x11-Speed Shifter
CRANK
Praxis ALBA, 48-32T
CASSETTE
Shimano 105 CS-R7000, 11-Speed, 11-30T
CHAIN
KMC X11, 11-Speed
BRAKES
FRONT BRAKE
Shimano 105 ST-R7020
REAR BRAKE
Shimano 105 ST-R7020
ROTOR
Shimano SM-RT30, 160mm
WHEELS
REAR HUB
Novatec D792SB, 12x142, 24H, CL
RIM
Alloy Double Wall, FV, 24H , 622x19, H;30mm, Tubeless Tape Instaled *
TYRE
VeeTireCo G-Sport, 700x35C, DCC Compound, Tubeless ready
CONTACT POINTS

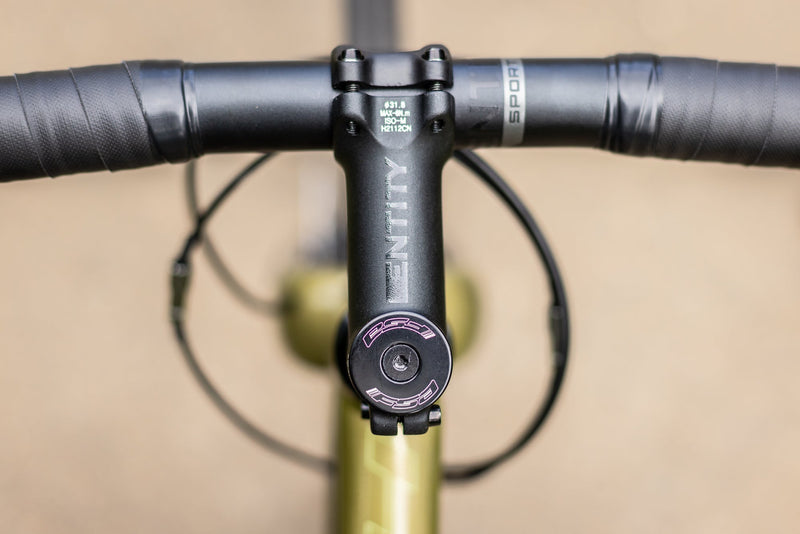

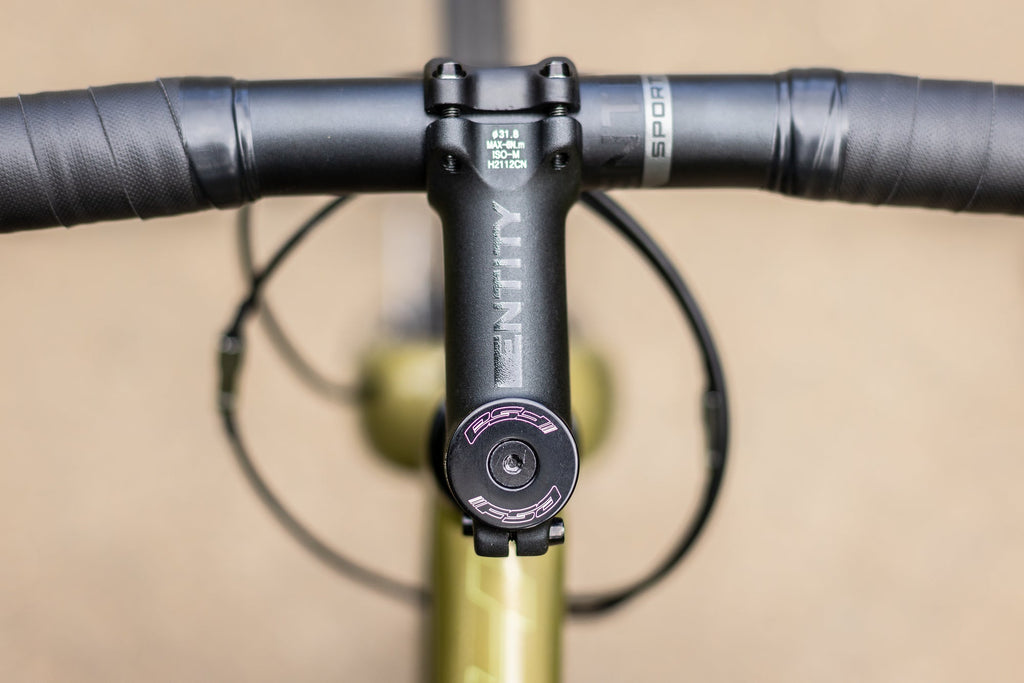

HANDLEBAR
Entity Sport, 121mm drop x 74mm reach x 16° flare
SADDLE
Entity, Steel, ø7mm
SEATPOST
Entity Sport, 27.2x350mm
STEM
Entity Sport, 31.8mm
WEIGHT
BIKE WEIGHT
22lbs

pecs are subject to change based on availability.

Geometry

  S M L XL
Height (cm) 4'11" – 5'4" 5'4" – 5'9" 5'9" – 6'2" 6'2" – 6'5"
(A) Seat Tube Length 430  470  515  560
(B) Seat Tube Angle 74.5  74  73.5  73
(C) Effective Seat Tube Angle 74.5  74  73.5  73
(D) Head Tube Length 140  160  190  220
(E) Head Tube Angle 70  71.5  71.8  72
(F) Effective Top Tube 525  550 580  610
(G) Bb Height 276.5  276.5  276.5 276.5
(H) Bb Offset 78  78  78  78
(I) Chainstay Length 425  425  425  425
(J) Wheelbase 1016.9  1022.8  1044.9  1067.5
(K) Frame Reach 367.2 14.46 379.7  395.3  410.4
(L) Frame Stack 568.9  593.8  623.5  652.8
(M) Standover Height 687.5  726  768.41  809.9
Handle Bar Width 420 420 440 440
Stem Length 80 80 90 90

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4

Pre-Ride Check
