Description

FRAME SPEC
Aluminum has long been the ideal material for bikes and airplanes with its incomparable strength-to-weight ratios. The Bend frame features internal cable routing, plus multiple mounting points for things like bottle cages, racks and mudguards.

GEOMETRY
The Bend features comfy all-day geo with 71° head and 74° seat tube angles, long 420mm chainstays for comfort, a 261mm bottom bracket height for extra clearance and an uber-long 1019mm (m) wheelbase that was designed for off-road stability at high speeds.

SORA 2X9
At the heart of the R2 lies the Shimano Sora 2x9 groupset, offering reliable performance and the versatility you need to get through your journey and come paired with Tektro Mechanical Disc Brakes.

ENTITY ALLOY
Featuring Entity aluminium contact points like flared drop bars for stability and control over the rough terrain and a lightweight alloy stem/seatpost combo.
Components
FRAMESET
SUSPENSION
DRIVETRAIN
BRAKES
WHEELS
CONTACT POINTS
WEIGHT
Specs are subject to change based on availability.
Geometry
S | M | L | |
Rider Height | 5'1"-5'5" | 5'5"-5'9" | 5'9"-6'1" |
(A) Stack | 569 | 599 | 632 |
(B) Reach | 365 | 380 | 395 |
(C) Head Tube Angle | 71° | 71° | 72° |
(D) Head Tube Length | 140 | 170 | 200 |
(E) Seat Tube Angle | 74° | 74° | 74° |
Seat Tube Angle Effective | 74° | 74° | 74° |
(F) Seat Tube Length | 430 | 480 | 535 |
(G) Top Tube Effective | 528 | 551 | 576 |
(H) Bottom Bracket Height | 261 | 261 | 261 |
(I) Bottom Bracket Offset | 80 | 80 | 80 |
(J) Chainstay | 420 | 420 | 420 |
(K) Wheel Base | 999 | 1019 | 1034 |
(L) Standover Height | 677 | 720 | 767 |
* All lengths in mm
Assembly
As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.
Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.
Unboxing Your Bike
Bike Fit Setup
Tyre Pressure Setup
Unboxing Your Bike
Bike Fit Setup
Tyre Pressure Setup

Polygon Bend R2 - 650b Gravel Bike
Short Description
Shipping






- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Purchase Gravel Bike

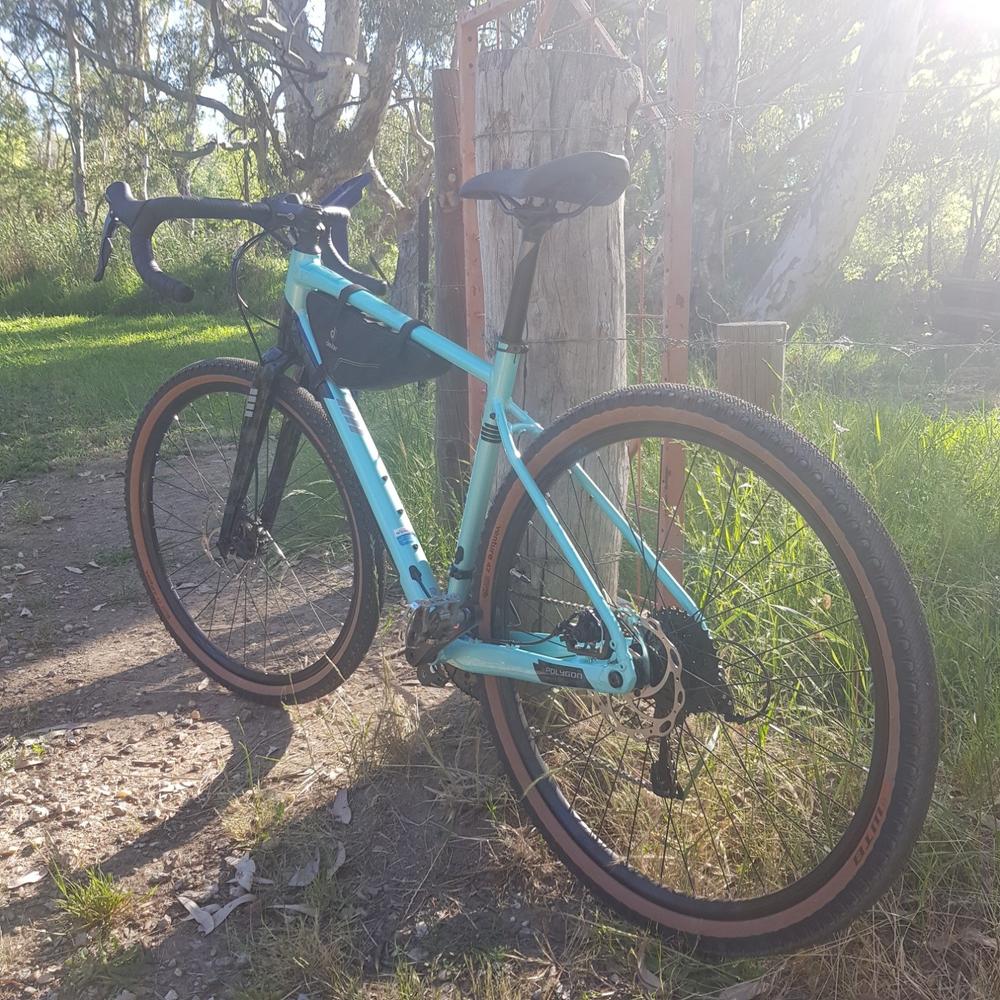

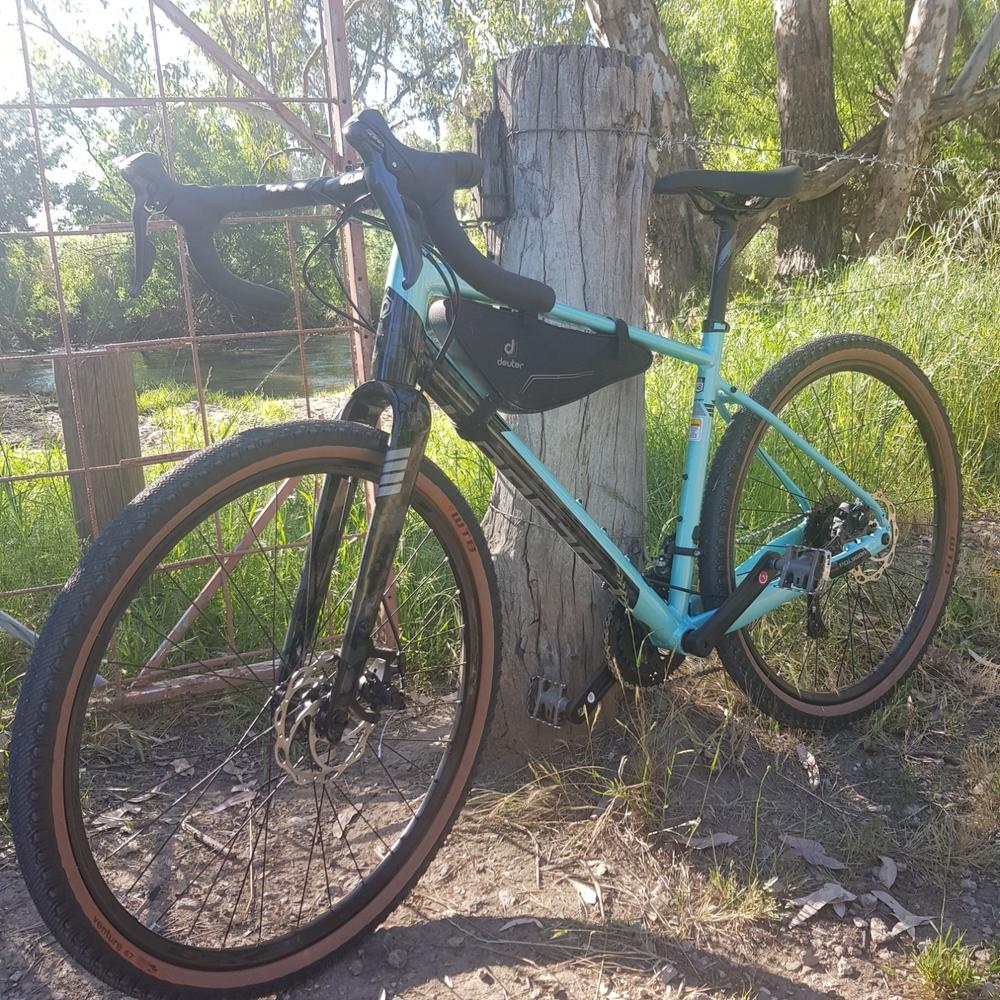

First time purchase of a bike online. Bikes on line was a great experience. Good communication and very fast delivery. Bike was well packed so no chance of transport damage. Riding it to work via gravel and has proven to be a great fun bike.

Good beginner grave bike for the price.
