Description

PERSONAL SHUTTLE SERVICE

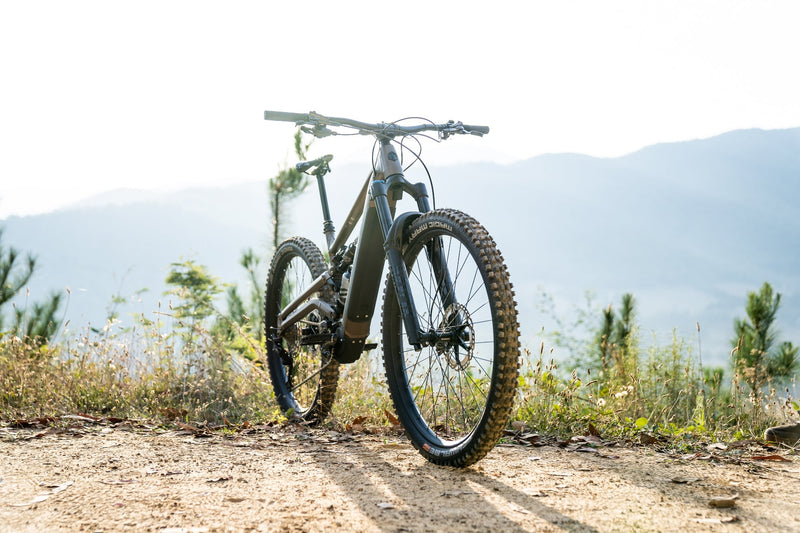

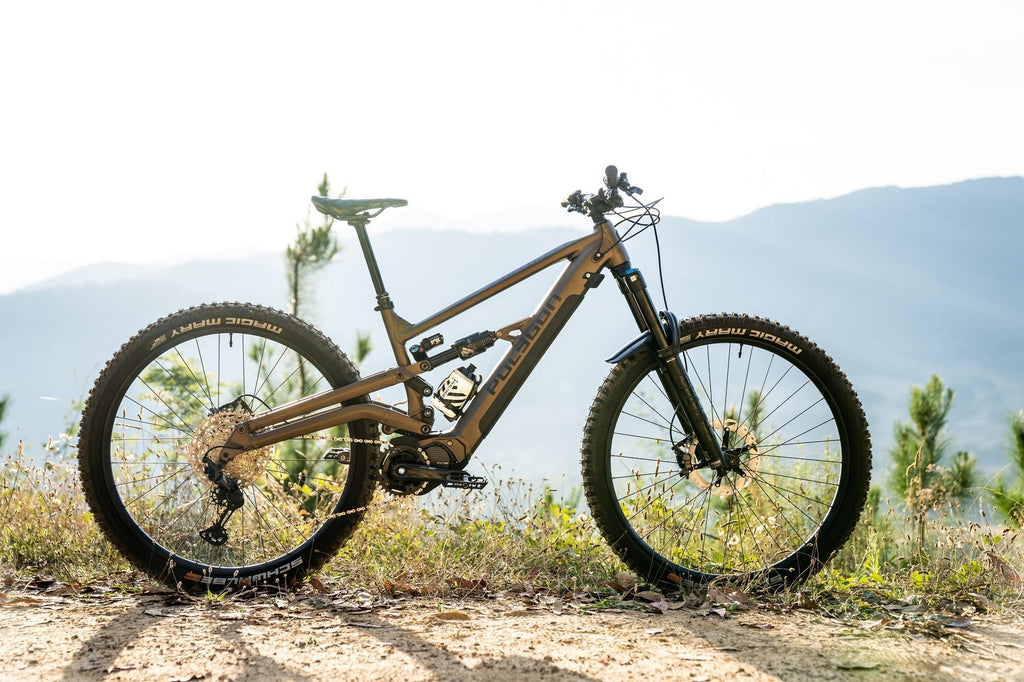

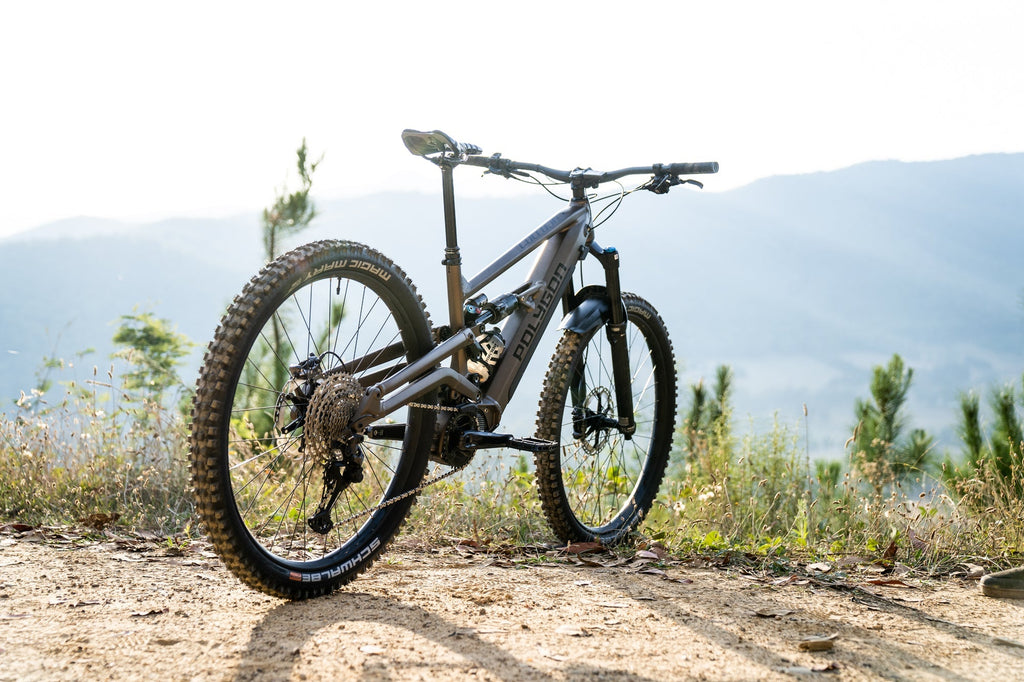

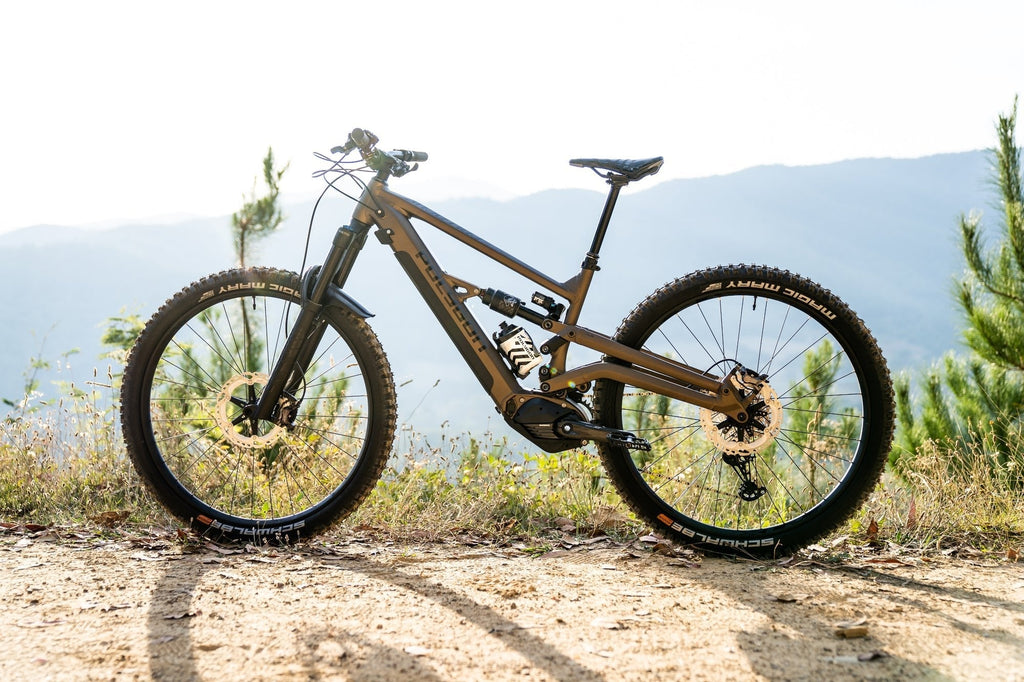

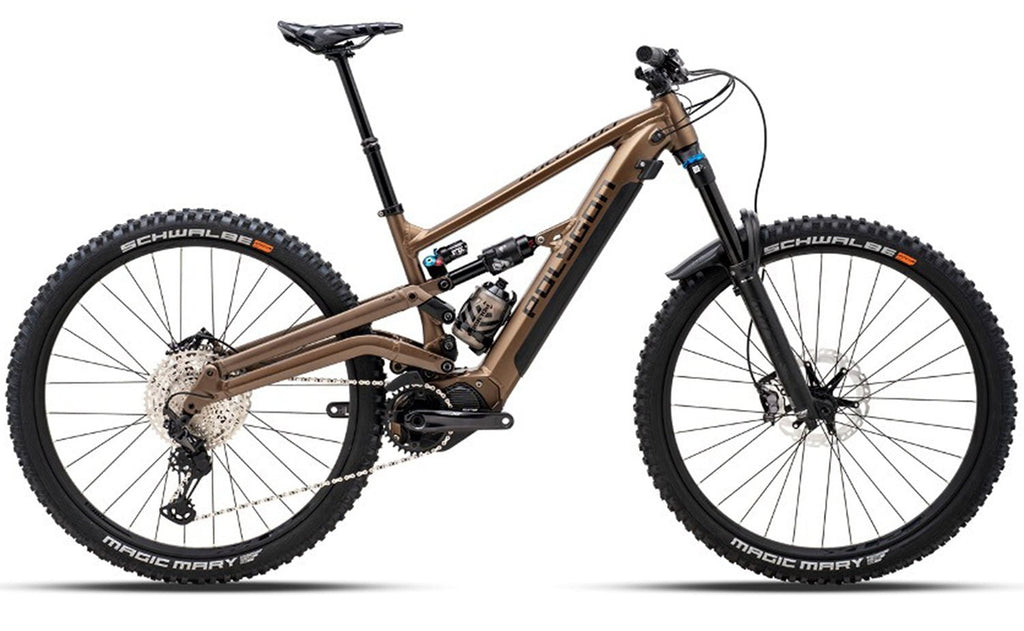

Experience the thrill of gravity-fed descents without the hassle of shuttling. The Collosus N8E's powerful Shimano EP801 motor and long-lasting 630Wh battery let you lap your favorite trails with ease. With 160mm of travel and a slack head angle, it's ready to tackle the most technical terrain, giving you the confidence to push your limits.

6-BAR LINKAGE

The Collosus N8E's 6-Bar Linkage IFS suspension isn't just about soaking up big hits. Its unique design provides a more responsive and active feel, allowing the rear wheel to track the terrain more effectively for improved traction and control. This translates to a faster, smoother, and more confident ride, even on the rowdiest trails.

30 YEARS OF EXPERIENCE

Polygon is a factory-direct brand with over 30 years of experience crafting high-performance bikes at competitive prices. Vertically integrated manufacturing ensures quality and cost savings. Their mountain bikes have been tested on the world stage at events like Redbull Rampage and the World Cup circuit, boasting a 5-year frame warranty for peace of mind.

INDUSTRY REVIEWS

“The Polygon Collosus N8E certainly is one of the best value and best equipped 160mm eMTBs that I have reviewed.” - AMB

STEPS ECOSYST.

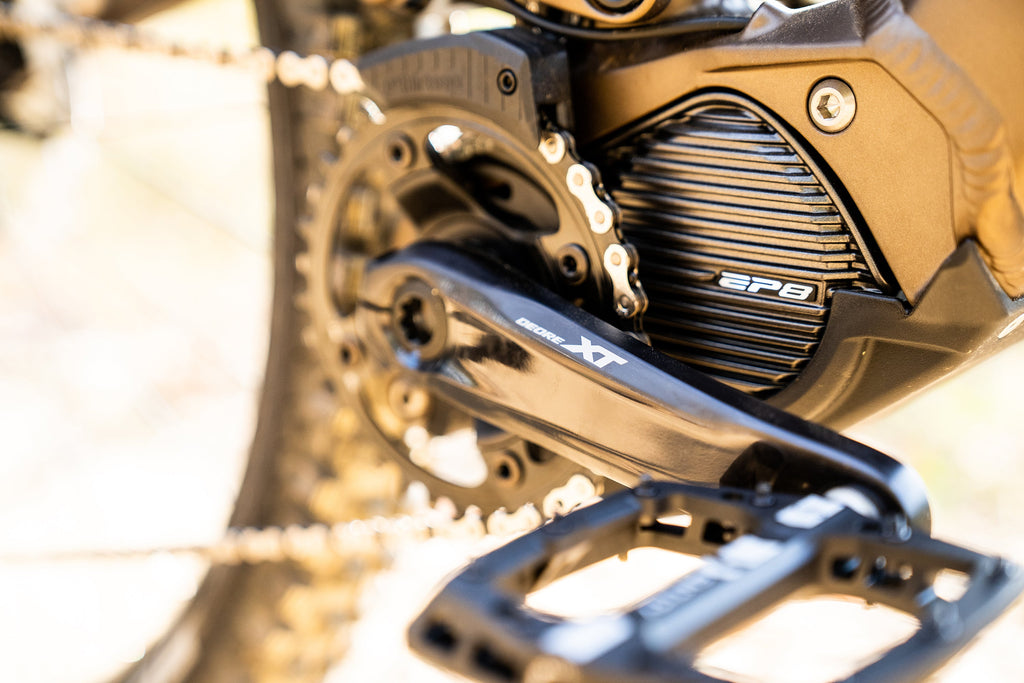

Shimano's lightest, most powerful motor ever features 85 Nm of torque and up to 500w of peak power. The 630Wh battery has enough capacity for 150kms in ECO mode and charges back up super quickly to 50% in 2.5 hours and 100% in 6.

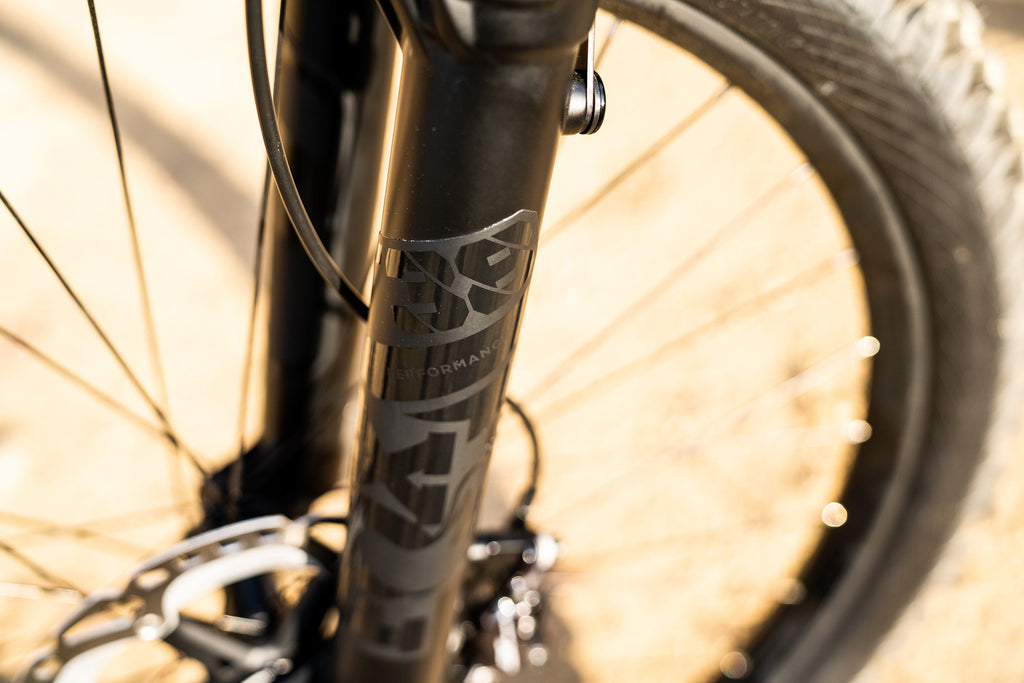

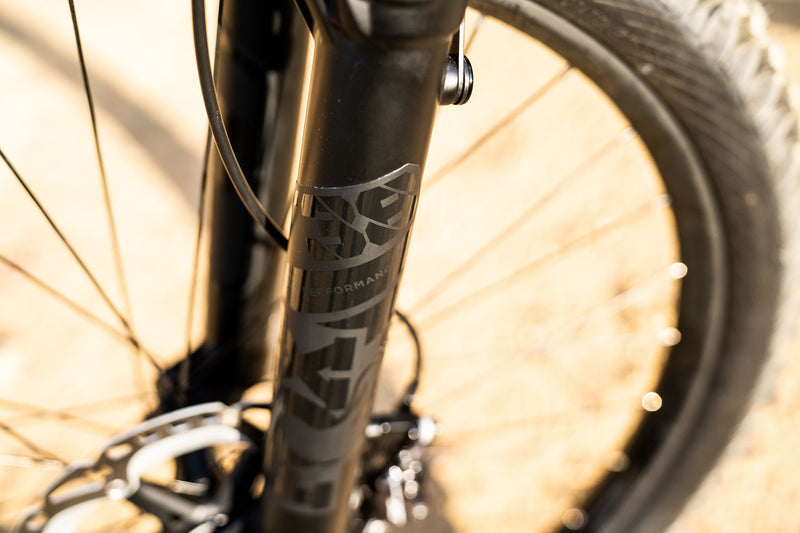

FOX 38 FORK

With 160mm of travel and innovative technology, the Fox 38 Performance fork features the EVOL air spring design, smooth damping, a stiff chassis, a mudguard and the ability to tune compression and rebound.

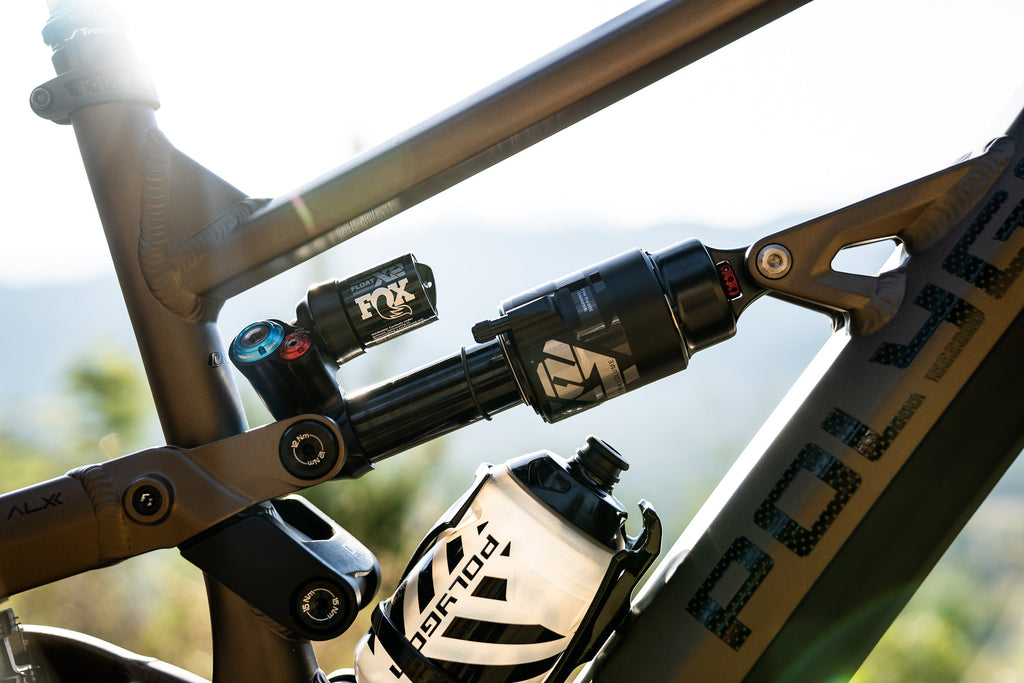

FOX FLOAT X2

The Float X2 shock offers adjustability, strength, low friction design, 2-position adjustment, MCU bottom-out bumper and the ability to tune high and low-speed compression and rebound.

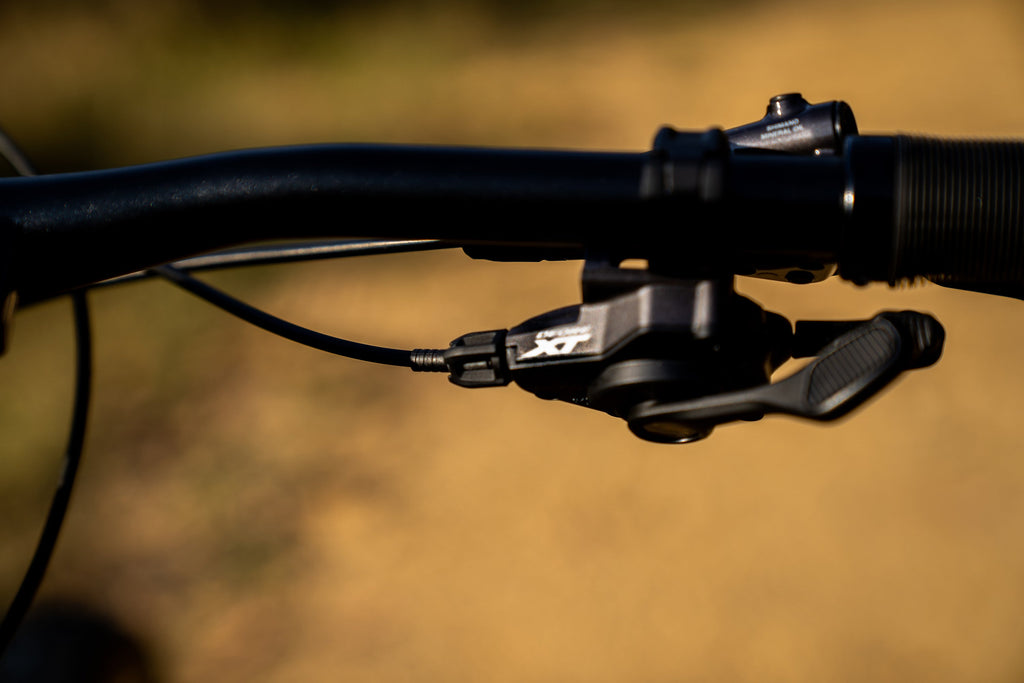

FULL XT

XT 12-Speed features a +500% gear ratio with Hyperglide+ and Shadow RD+ technologies, plus powerful 4-piston callipers with Ice-Tech pads and 203mm rotors, featuring easy-to-use one-way bleeding and Servo Wave technologies.

Components

FRAMESET
FRAME

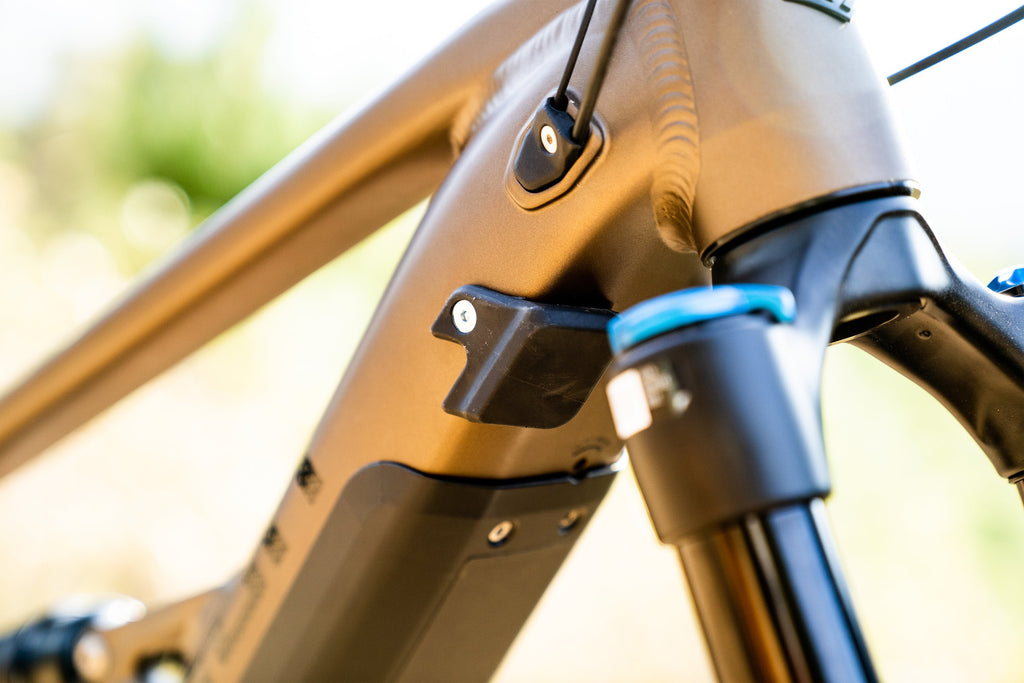

ALX Enduro Frame, IFS Suspension Platform 160mm Travel, Dropper Post And Rear Derailleur Routing, Chainstay Direct Post-Mount Disc Brake, Integrated Battery/Charging Port, Built-in Rear Speed Sensor, 148x12mm Boost Thru-Axle
SUSPENSION
FORK
Fox 38 Performance, 160mm Travel, 110x15mm Boost Thru-Axle, 44mm offset
SHOCK
Fox Float X2, 205x65mm Trunnion, Air, 2-Position Adjustment
DRIVETRAIN
REAR DERAILLEUR
Shimano XT RD-M8100-SGC
SHIFTER
Shimano XT SL-M8100-R, 12-Speed
CRANK
Shimano XT FC-M8150, 34T, 523mm Chain Line, S-XL: 160mm
CASSETTE
Shimano Deore CS-M6100, 12-Speed, 10-51T
CHAIN
KMC E12, 12-Speed
E SYSTEM
BATTERY
Shimano STEPS BT-EN806, Integrated, 630Wh Rated Capacity
MOTOR
Shimano STEPS DU-EP801, 85Nm Maximum Torque, 250W Continuous Rated Power
DISPLAY
Shimano STEPS SC-E600 Display
SWITCH
Shimano STEPS SW-EN600-L, Left Hand Switch for Assist Mode Change
BRAKES
FRONT BRAKE
Shimano XT BR-M8120, 4-Piston Caliper, Hydraulic Disc Brake, 203mm Centreline Rotor
REAR BRAKE
Shimano XT BR-M8120, 4-Piston Caliper, Hydraulic Disc Brake, 203mm Centreline Rotor
WHEELS
FRONT HUB
Shimano HB-MT400-B, 15mm Thru-Axle, 110mm spacing
REAR HUB
Shimano FH-MT410-B, Micro spline Hub, 12mm Thru-Axle, 148mm spacing
RIM
Entity XL3, Alloy Double Wall, 35mm Inner, 32H, Tubeless Compatible
TYRE
Schwalbe Magic Mary, 29x2.6”, Super Gravity TLE Addix Soft, Tubeless Compatible
CONTACT POINTS
SADDLE
Entity Xtend, 7mm Rail
SEATPOST
TranzX JD-YSP23JL, 1x Remote, 30.9 x 459mm (S-M), 499mm (L-XL), 150mm (S-M), 170mm (L-XL)
HANDLEBAR
Entity, 35mm Clamp, 780mm Width, 25mm Rise, 9° Bend
STEM
Entity, 35mm Length, 0° Drop
WEIGHT
BIKE WEIGHT
56lbs (Size L)

Specs are subject to change based on availability

Geometry

  S M L XL
Rider’s height 5'2"–5'6" 5'6"–5'10" 5'10"–6'1"  6'1"–6'5"
(A) Seat Tube Length 400 410 420 430
(B) Seat Tube Angle 70° 70° 70° 70°
(C) Effective Seat Tube 77° 77° 77° 77°
(D) Head Tube Length 100 105 110 120
(E) Head Tube Angle 64.5° 64.5° 64.5° 64.5°
(F) Effective Top Tube 595 616 637 659
(G) BB Height 345 345 345 345
(H) BB Drop 35 35 35 35
(I) Chainstay Length 435 435 435 435
(J) Wheelbase 1212 1234 1256 1281
(K) Frame Reach 450 470 490 510
(L) Frame Stack 626 631 635 644
(M) Standover Height 710 710 710 710
Handlebar Width 780 780 780 780
Stem Length 35 35 35 35
Crank Length 160 160 160 160
Dropper Post travel 150 150 170 170

*All measurements are in mm

Assembly

Get ready to hit the road with your new bike! It’ll arrive almost ready to go, but you’ll need to do a quick setup first. Don’t worry, we’ve popped all the tools you’ll need right in the box.

If you’re a bike-building pro: You’ll be done in just 10-15 minutes.
Got a knack for fixing things? Give it 15-25 minutes.
New to the DIY world? Take your time, around 30-40 minutes, and you’ll get there!

Need some visual aids? We’ve got you covered! Just click on our step-by-step video guide below for a smooth setup. Happy cycling!

Step 1

Unboxing Your Polygon Collosus N8E

Step 2

How To Setup Your Suspension

Step 3

Dial In Your Bike Fit

Step 4

Dial In Your Tyre Pressures

Step 5

Pre-Ride Check
