Description

PERSONAL SHUTTLE SERVICE

Experience the thrill of gravity-fed descents without the hassle of shuttling. The Collosus N8XE's powerful Shimano EP801 motor and long-lasting 630Wh battery let you lap your favorite trails with ease. With 160mm of travel and a slack head angle, it's ready to tackle the most technical terrain, giving you the confidence to push your limits.

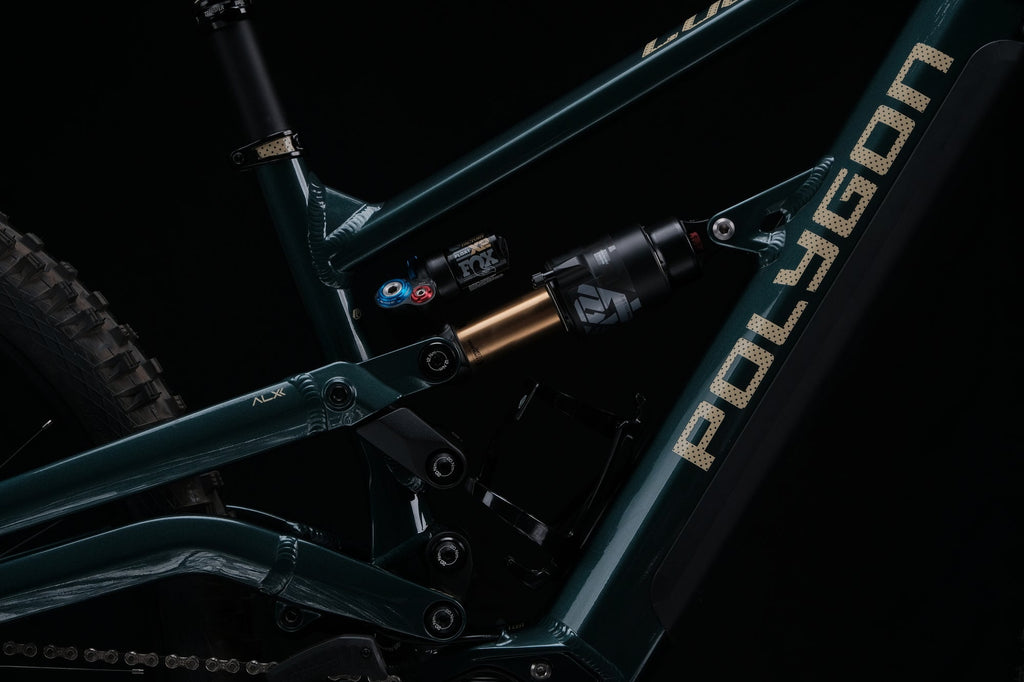

6-BAR LINKAGE

The Collosus N8XE's 6-Bar Linkage IFS suspension isn't just about soaking up big hits. Its unique design provides a more responsive and active feel, allowing the rear wheel to track the terrain more effectively for improved traction and control. This translates to a faster, smoother, and more confident ride, even on the rowdiest trails.

A TRUSTED BRAND

Polygon is a factory-direct brand with over 30 years of experience crafting high-performance bikes at competitive prices. Vertically integrated manufacturing ensures quality and cost savings. Their mountain bikes have been tested on the world stage at events like Redbull Rampage and the World Cup circuit, boasting a 5-year frame warranty for peace of mind.

INDUSTRY REVIEW

“The Polygon Collosus N8E certainly is one of the best value and best equipped 160mm eMTBs that I have reviewed.” - AMB

SHIMANO EP801 / 630Wh

Experience the seamless integration of Shimano's powerful EP801 motor and long-lasting 630Wh battery. Delivering 85nm of intuitive and efficient power you will have the confidence to tackle steep climbs and explore further.

FOX 38 FACTORY FORK

Featuring 160mm of buttery-smooth Kashima-coated goodness and stiff 38mm stanchions combined with independent high and low-speed compression and rebound adjustments, provides unparalleled control and responsiveness on the gnarliest descents.

FOX FACTORY X2 SHOCK

Its high-volume air spring and X2 architecture deliver exceptional small-bump sensitivity and big-hit support and independent high and low-speed compression and rebound adjustments ensure a smooth and predictable ride even on the rowdiest trails.

SHIMANO XT Di2 DRIVETRAIN

The latest electronic drivetrain from Shimano features free shift, which will change gears without pedaling and auto-shift, where the derailleur will shift automatically for you. It also features Hyperglide+ for improved performance under load and 510% gear range

Components

FRAMESET
FRAME
ALX Enduro Frame, IFS Suspension Platform 160mm Travel, Dropper Post And Rear Derailleur Routing, Chainstay Direct Post-Mount Disc Brake, Integrated Battery/Charging Port, Built-in Rear Speed Sensor, 148x12mm Boost Thru-Axle, 73mm Threaded BB
SUSPENSION
FORK
Fox 38 Float Factory, 160mm Travel, 110x15mm Boost Thru-Axle, 44mm offset
SHOCK
Fox Float X2 Factory, 205x65mm Trunnion, Air, 2-Position Adjustment
DRIVETRAIN
REAR DERAILLEUR
Shimano XT Di2 RD-M8150
SHIFTER
Shimano XT Di2 SW-M8150, 12-Speed
CRANK
Shimano XT FC-M8150, 38T
CASSETTE
Shimano XT CS-M8100, 12-Speed, 10-51T
CHAIN
KMC E12, 12-Speed
E SYSTEM
BATTERY
Shimano STEPS BT-EN806, Integrated, 630Wh Rated Capacity
MOTOR
Shimano STEPS DU-EP801, 85Nm Maximum Torque, 250W Continuous Rated Power
DISPLAY
Shimano STEPS SC-E600 Display
CHARGER
Shimano EC-E6002 w/ SM-BTE80
SWITCH
Shimano STEPS SW-EN600-L, Left Hand Switch for Assist Mode Change
BRAKES
FRONT BRAKE
Shimano XT BR-M8120, 4-Piston Caliper, Hydraulic Disc Brake, 203mm Rotor
REAR BRAKE
Shimano XT BR-M8120, 4-Piston Caliper, Hydraulic Disc Brake, 203mm Rotor
WHEELS
FRONT HUB
Shimano TC500, 15mm Thru-Axle, 110mm spacing
REAR HUB
Shimano TC500, Micro spline Hub, 12mm Thru-Axle, 148mm spacing
RIM
Entity XL2, Alloy Double Wall, 35mm Inner, 32H, Tubeless Compatible
TYRE
Schwalbe Magic Mary, 29x2.6”, Super Gravity TLE Addix Soft, Tubeless Compatible
CONTACT POINTS
SADDLE
Entity Xtend, 7mm Rail
SEATPOST
Fox Transfer Factory, 30.9mm, 150mm (S-M), 170mm (L-XL)
HANDLEBAR
Raceface Affect R, 35mm Clamp, 780mm Width, 20mm Rise, 8° Bend
STEM
Raceface Affect R 35, 40mm Length, 0° Drop

Specs are subject to change based on availability.

Geometry

  S M L XL
Rider’s Height 5'2" - 5'6" 5'6" - 5'10" 5'10" - 6'1" 6'1" - 6'5"
(A) Seat Tube Length 400 410 420 430
(B) Seat Tube Angle 77° 77° 77° 77°
(C) Effective Seat Tube 77° 77° 77° 77°
(D) Head Tube Length 100 105 110 120
(E) Head Tube Angle 64.5° 64.5° 64.5° 64.5°
(F) Effective Top Tube 595 616 637 659
(G) BB Height 345 345 345 345
(H) BB Drop 35 35 35 35
(I) Chainstay Length 435 435 435 435
(J) Wheelbase 1212 1234 1256 1281
(K) Frame Reach 450 470 490 510
(L) Frame Stack 626 631 635 644
(M) Standover Height 710 710 710 710
Handlebar Width 780 780 780 780
Stem Length 35 35 35 35
Crank Length 160 160 160 160
Dropper Post travel 150 150 170 170

*All measurements are in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

How To Unbox Your N8XE

Step 2

Dial In Your Suspension Setup

Step 3

Dial In Your Bike Fit

Step 4

Dial In Your Tyre Pressures

Step 5

Pre-Ride Check
