Description

FRAME SPEC

Aluminum has long been the ideal material for bikes and aeroplanes with its incomparable strength-to-weight ratios. The frame features internal cable routing and multiple mounting points for bottle cages, racks and mudguards.

GEOMETRY

Designed to be confident with 71° head and 74° seat tube angles, longer 440mm stays for comfort, 415mm of reach and 289mm bottom bracket height for ground clearance. (In Medium)

SUNTOUR FORK

The Suntour NEX is a trekking-specific suspension fork. It features 63mm of travel, lightweight magnesium lowers and a quick-release interface.

ALTUS 2X8

The Shimano Altus/Acera drivetrain is paired with a 12-32T cassette and 42/32T chainrings, giving you the perfect gear ratios to get around with ease.

TEKTRO HYDRO

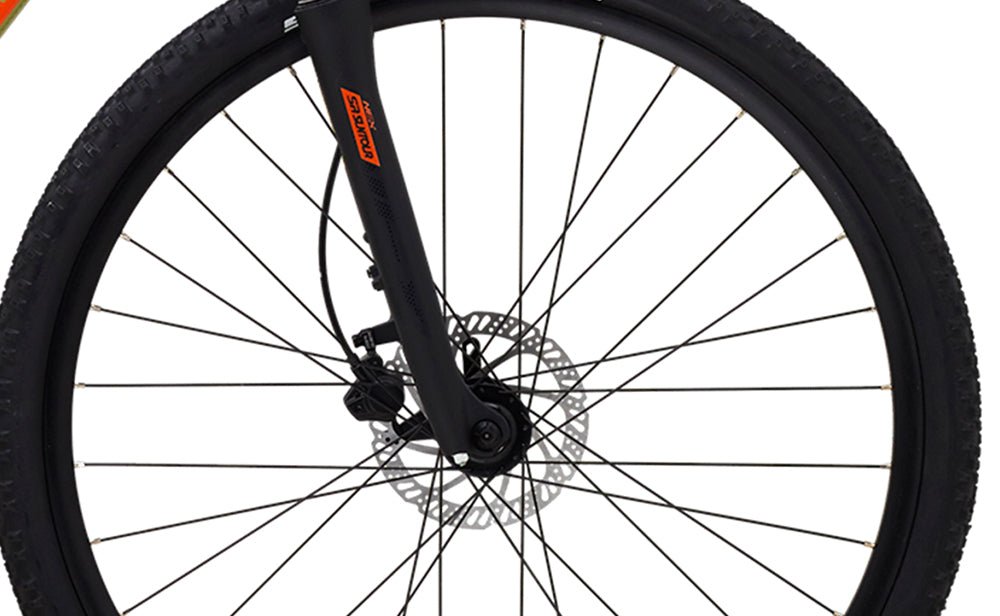

Tektro M275 Hydraulic disc brakes provide a reliable bite point and quiet braking performance in even the dustiest conditions and come paired with 160mm rotors

ENTITY ALLOY

Featuring Entity aluminium contact points like raised flat bars for stability and control and a lightweight alloy stem/seatpost combo.

Components

FRAMESET
FRAME
AL6 Urban Cross 700C, 135mm QR
HEADSET
Threadless Integrated, IS 42/28.6 | IS 52/40
SUSPENSION
FORK
Suntour NEX, 63mm Travel, Preload Adjuster
DRIVETRAIN
REAR DERAILLEUR
Shimano Acera RD-M360, 8 Speed
FRONT DERAILLEUR
Shimano Tourney FD-TY710, Top-Swing Dual-Pull
SHIFTER
Shimano Altus SL-M315, 2x8 Speed
CRANK
Alloy 42/34T, 170mm (S, M) / 175mm (L, XL)
CHAINRING
42/34T
CASSETTE
Shimano CS-HG200, 12-32T, 8 Speed
CHAIN
KMC Z-8.3
BRAKES
FRONT BRAKE
Tektro M275 Hydraulic Disc, 160mm Rotor
REAR BRAKE
Tektro M275 Hydraulic Disc, 160mm Rotor
WHEELS
REAR HUB
Forged Aluminum, 10x135mm, QR, Disc, 32H
RIM
Alloy Double Wall 32H, 6 Bolt Rotor
TYRE
WTB Riddler 700x45C
CONTACT POINTS
HANDLEBAR
Entity Xpert, 700mm, 31.8mm, Alloy
SADDLE
Entity Saddle
SEATPOST
Entity Xpert, 27.2x350mm, 15mm Offset, Alloy
STEM
Entity Xpert, 75mm, Alloy
WEIGHT
BIKE WEIGHT
31lbs (M)

Specs are subject to change based on availability.

Geometry

  S M L XL
Rider Height 155 - 165 cm 165 - 175 cm 175 - 185 cm 185 - 195 cm
(A) Stack 621 621 630 640
(B) Reach 385 415 440 465
(C) Head Tube Angle 71° 71° 71° 71°
(D) Head Tube Length 90 90 100 110
(E) Seat Tube Angle 74° 74° 74° 74°
Seat Tube Angle Effective 74° 74° 74° 74°
(F) Seat Tube Length 400 431 470 516
(G) Top Tube Effective 563 593 620 648
(H) Bottom Bracket Height 289 289 289 289
(I) Bottom Bracket Offset 70 70 70 70
(J) Chainstay 440 440 440 440
(K) Wheel Base 1063 1093 1121 1149
(L) Standover Height 688 708 742 781

* All lengths in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup
