Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
Polygon Heist X5 - Hybrid Bike
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt

Description

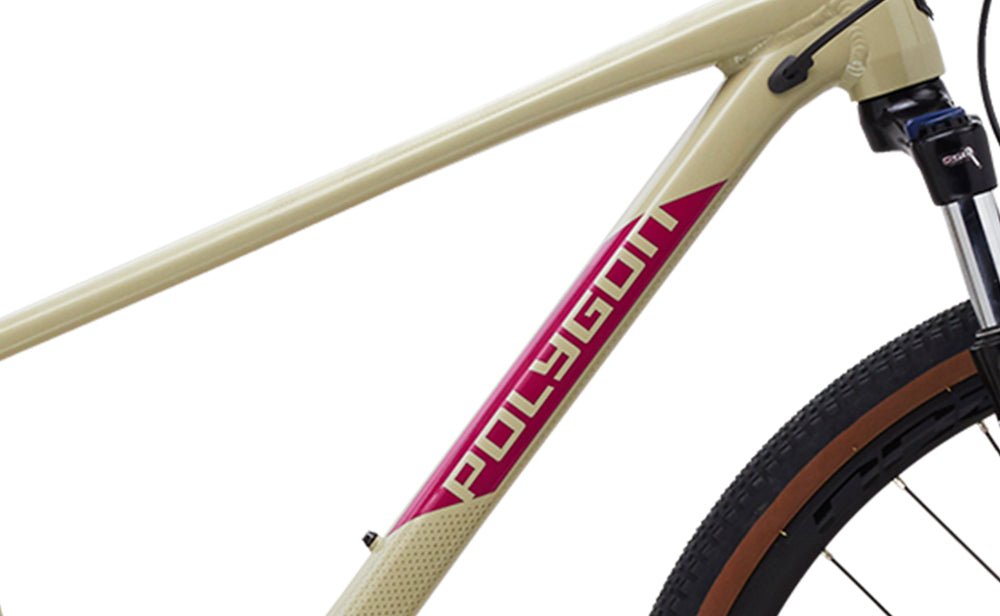

FRAME SPEC

Aluminum has long been the ideal material for bikes and aeroplanes with its incomparable strength-to-weight ratios. The frame features internal cable routing and multiple mounting points for bottle cages, racks and mudguards.

GEOMETRY

Designed to be confident with 71° head and 74° seat tube angles, longer 440mm stays for comfort, 415mm of reach and 289mm bottom bracket height for ground clearance. (In Medium)

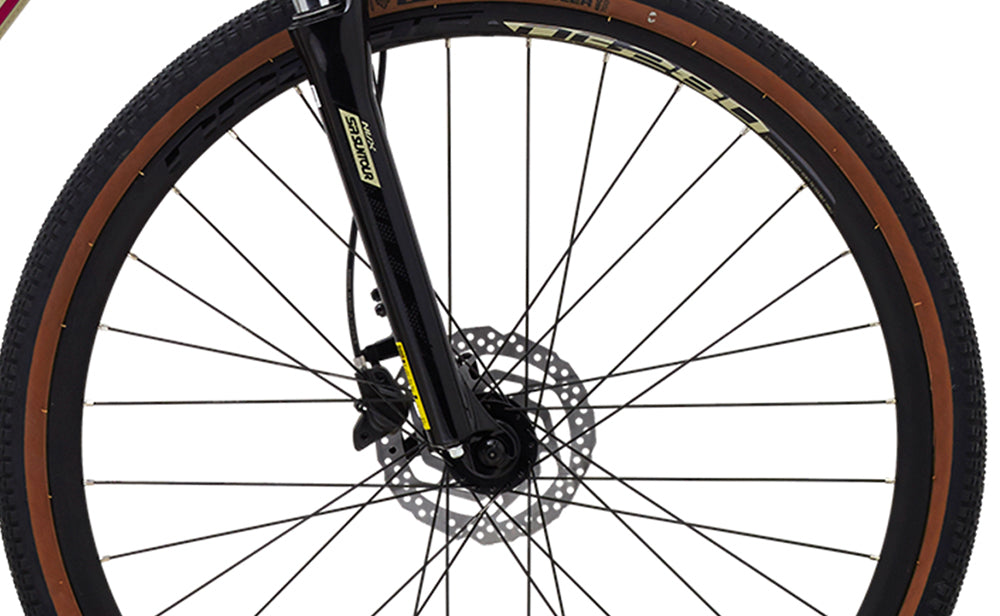

SUNTOUR FORK

The Suntour NVX is a lightweight trekking-specific suspension fork. It features 63mm of travel, lightweight magnesium lowers and a quick-release interface.

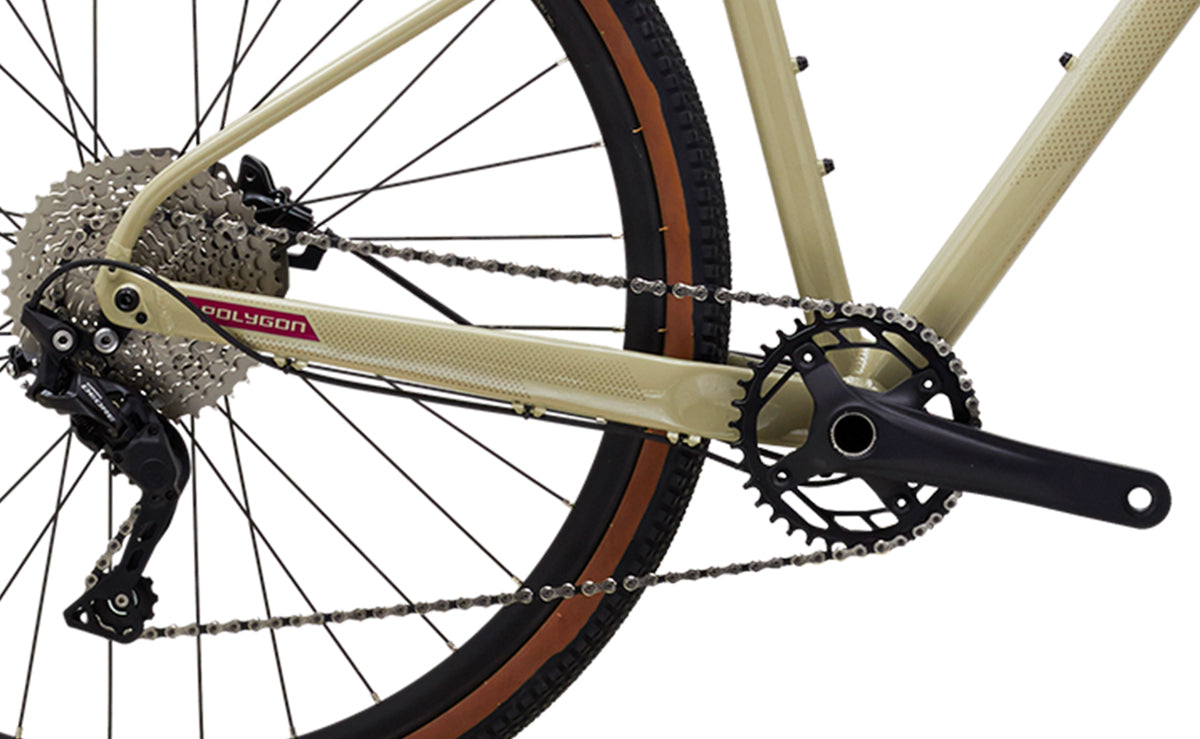

DEORE 1X10

The 1x10 Shimano Deore drivetrain is paired with an 11-42T cassette and a 42T chainring, giving you the perfect gear ratios to get around with ease.

SHIMANO HYDRO

With braking power, lever reach tuned for every rider, and low-maintenance design, the Shimano BL-MT201 is the ideal brake for everyone.

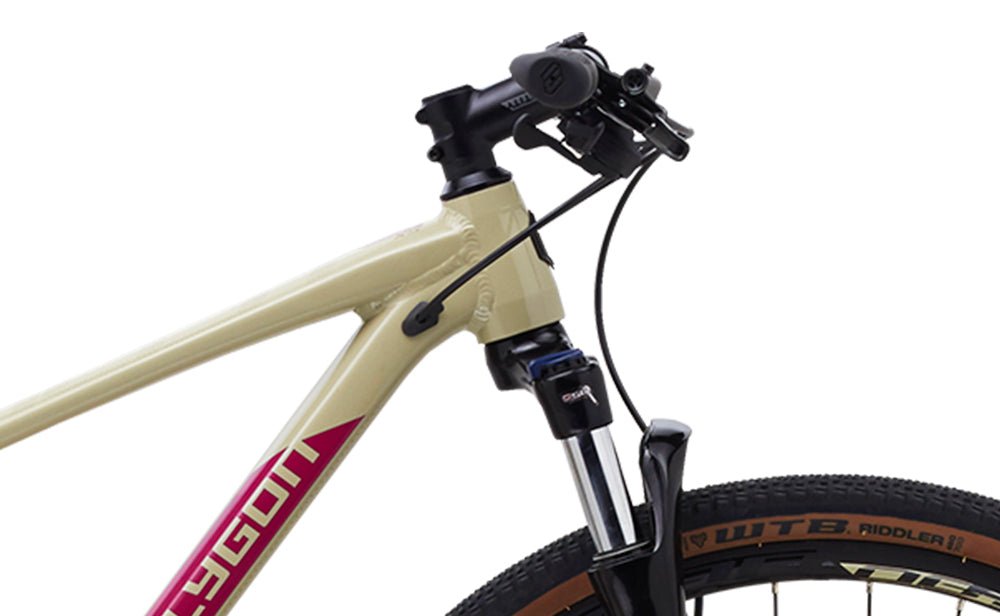

ENTITY ALLOY

Featuring Entity aluminium contact points like raised flat bars for stability and control and a lightweight alloy stem/seatpost combo.

Components

FRAMESET
FRAME
2024 Polygon Heist X5 - Hybrid Bike
SUSPENSION
FORK
Suntour NVX, 63mm Travel, Preload Adjuster, Hydraulic Lock Out
DRIVETRAIN
REAR DERAILLEUR
Shimano Deore RD-M6000, 10 Speed
SHIFTER
Shimano Deore SL-M6000, 10 Speed
CRANK
ProWheel Alloy 36T, 170mm (S, M) / 175mm (L, XL)
CASSETTE
Shimano CS-HG500, 11-42T, 10 Speed
CHAIN
KMC X10-1
BRAKES
FRONT BRAKE
Shimano BL-MT201 Hydraulic Disc, 160mm Rotor
REAR BRAKE
Shimano BL-MT201 Hydraulic Disc, 160mm Rotor
WHEELS
REAR HUB
Forged Aluminum, 10x135mm, QR, Disc, 32H
RIM
Polygon Double Wall Alloy, 21mm Inner
TYRE
WTB Riddler 700x45C
CONTACT POINTS
HANDLEBAR
Entity Xpert, 700mm, 31.8mm, Alloy
SADDLE
Entity Saddle

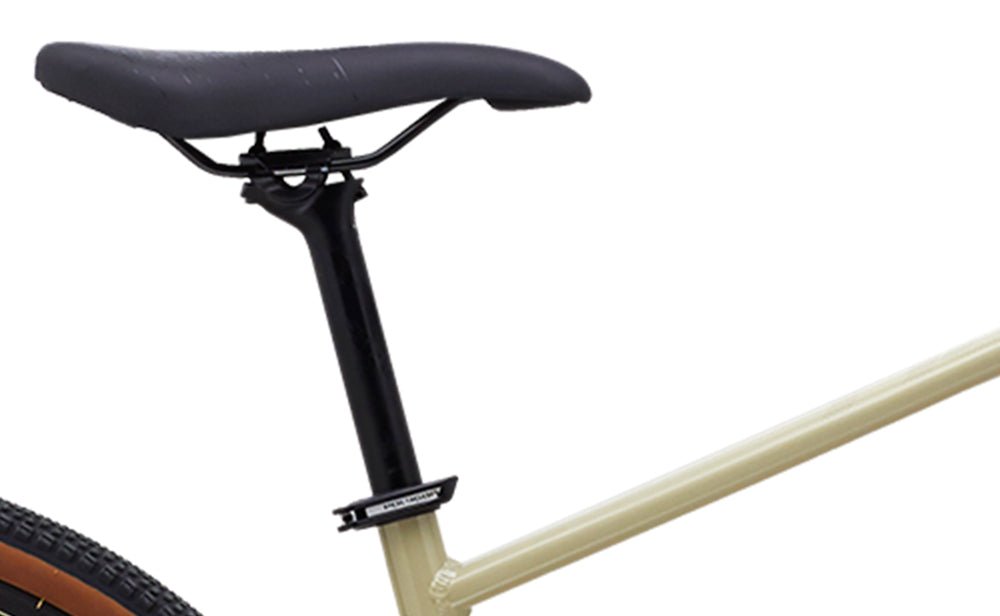

SEATPOST
Entity Xpert, 27.2x350mm, 15mm Offset, Alloy
STEM
Entity Xpert, 75mm, Alloy
WEIGHT
BIKE WEIGHT
30lbs (Size M)

Specs are subject to change based on availability.

Geometry

  S M L XL
Rider Height 155 - 165 cm 165 - 175 cm 175 - 185 cm 185 - 195 cm
(A) Stack 621 621 630 640
(B) Reach 385 415 440 465
(C) Head Tube Angle 71° 71° 71° 71°
(D) Head Tube Length 90 90 100 110
(E) Seat Tube Angle 74° 74° 74° 74°
Seat Tube Angle Effective 74° 74° 74° 74°
(F) Seat Tube Length 400 431 470 516
(G) Top Tube Effective 563 593 620 648
(H) Bottom Bracket Height 289 289 289 289
(I) Bottom Bracket Offset 70 70 70 70
(J) Chainstay 440 440 440 440
(K) Wheel Base 1063 1093 1121 1149
(L) Standover Height 688 708 742 781

* All lengths in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup
