Description

FRAME SPEC

Aluminum has long been the ideal material for bikes and aeroplanes with its incomparable strength-to-weight ratios. The frame features internal cable routing and multiple mounting points for bottle cages, racks and mudguards.

GEOMETRY

Designed to be confident with 69 head and 73° seat tube angles, longer 430mm stays for comfort, 400mm of reach and 317mm bottom bracket height for ground clearance. (In Medium)

SUNTOUR XCM

The XCM HLO coil spring fork from SR Suntour features 120mm of travel, a hydraulic lockout, a preload adjuster and a quick-release interface, offering a smooth and controlled ride.

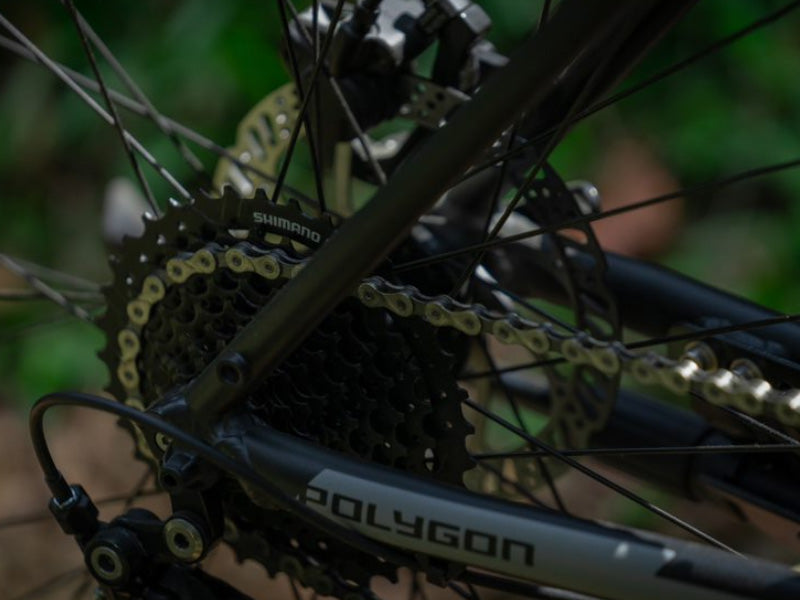

ALTUS 2X8

The Shimano Altus/Acera drivetrain is paired with a 12-36T cassette and 34/22T chainrings, giving you the perfect gear ratios to get around with ease.

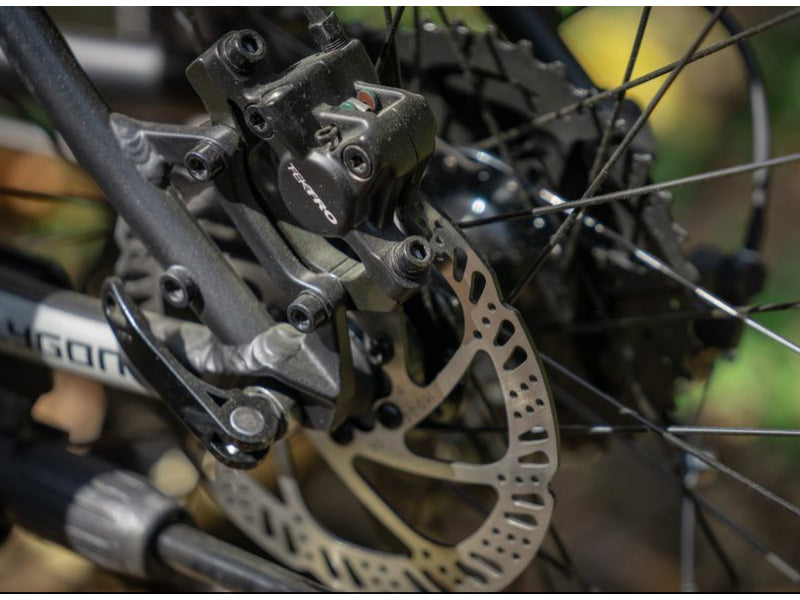

TEKTRO HYDRO

Tektro M275 Hydraulic disc brakes provide a reliable bite point and quiet braking performance in even the dustiest conditions and come paired with 160mm rotors.

ENTITY ALLOY

Featuring Entity aluminium contact points like raised flat bars for stability and control and a lightweight alloy stem/seatpost combo.

Components

FRAMESET
FRAME
ALUTECH XC Sport, 6061 Aluminium
HEADSET
Semi-integrated, S.H.I.S. ZS 44/28.6 | 44/30
SUSPENSION
FORK
SR Suntour XCM Coil Spring, Preload Adjuster, Hydraulic Lockout, Travel 120mm
DRIVETRAIN
REAR DERAILLEUR
Shimano M3100 9 Speed
FRONT DERAILLEUR
Shimano Altus M2020, Top-Swing Dual-Pull
SHIFTER
Shimano M2010 Altus 2X9 Speed
CRANK
Alloy Double Crankset 34/22T, 170mm
CASSETTE
Shimano Altus CS-HG200, 11-36T, 9 Speed
CHAIN
KMC X9
BRAKES
FRONT BRAKE
Tektro HD-M275 Hydraulic Disc Brake, 160mm Rotors
REAR BRAKE
Tektro HD-M275 Hydraulic Disc Brake, 160mm Rotors
WHEELS
RIM
Double Wall Alloy Rims and Alloy Hubs, 32H
TYRE
MTB, 2.25"
CONTACT POINTS
HANDLEBAR
Entity Sport 740mm, Alloy
SADDLE
Entity Void
SEATPOST
Entity Sport, Alloy, 15mm Offset, 27.2mmx350mm
STEM
Entity Sport 45mm, Alloy
PEDALS
Nylon Platform
WEIGHT
BIKE WEIGHT
32lbs (Size M)
ACCESSORIES
KICK STAND
Included, rear mount

Specs are subject to change based on availability

Geometry

  S M L M L XL
Wheel Size 27.5" 27.5" 27.5" 29" 29" 29"
Rider Height 5'1" - 5'5" 5'5" - 5'9" 5'9" - 6'1" 5'5" - 5'9" 5'9" - 6'1" 6'1" - 6'5"
(A) Stack 610 610 615 615 624 629
(B) Reach 383 398 417 400 415 430
(C) Head Tube Angle 69° 69° 69° 69.5 69.5 69.5
(D) Head Tube Length 100 100 105 90 100 105
(E) Seat Tube Angle 73° 73° 73° 71.8 71.7 71.7
Seat Tube Angle Effective 73° 73° 73° 73° 73° 73°
(F) Seat Tube Length 406 456 506 431 470 516
(G) Top Tube Effective 570 585 605 588 605.8 622.3
(H) Bottom Bracket Height 299 299 299 305 305 305
(I) Bottom Bracket Offset 47 47 47 60 (drop) 60 (drop) 60 (drop)
(J) Chainstay 430 430 430 455 455 455
(K) Wheel Base 1089 1109 1107 1108 1126 1143
(L) Standover Height 713 753 793 736 769 794

* All lengths in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4

Pre-Ride Check
