Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
Polygon Syncline C5 - Carbon Mountain Bike
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt

Description

POLYGON QUALITY

So, you're new to mountain biking and want a high-value bike with progressive modern geometry perfect for local XC trails, racing or multi-day adventures? The C5 is your ticket to ride with a capable and lightweight carbon frame that will take you anywhere you want to go.

GEOMETRY

The C5s' sporty angles, tapered headtube, and stable chainstays make for better acceleration and steady handling. Ideal for fire trails, local single track and even the odd multi-day adventure. It features a 67° head tube and 73° seat tube angles, and 425-435mm chain stays for fast and snappy handling.

ACX CARBON

ACX carbon fibre is light, stiff, and strong. Polygon uses a blend of Toray T700 and High Modulus M series carbon, resulting in the maximization of strength and stiffness.

FOX FORK

Fox has created a super stiff chassis in a 120mm package and is now the benchmark for lightweight cross-country forks. It offers high performance, adjustability and improved damper performance.

SLX 12-SPEED

The Shimano SLX drivetrain is paired with an 11-51T cassette, giving you a +500% gear ratio to get up and down the mountain with ease.

Components

FRAMESET
FRAME
ACX XC Performance Carbon Fibre, Pressfit BB92, Internal Cable Route, Boost 12x148mm Rear Thru-Axle
SUSPENSION
FORK
Fox 32 Rhythm 120mm Travel, Rebound & Sweep Adjustment, Tapered, Boost Thru-Axle 15x110mm
DRIVETRAIN
REAR DERAILLEUR
Shimano SLX RD-M7100 Shadow Plus 12 Speed
SHIFTER
Shimano SLX SL-M7100
CRANK
Shimano SLX FC-M7100 Chainwheel 32T
CASSETTE
Sunrace MZ-800, 11-51T, 12-Speed
CHAIN
KMC X12
BRAKES
FRONT BRAKE
Shimano BR-MT401, 180mm Rotor
REAR BRAKE
Shimano BR-MT401, 160mm Rotor
WHEELS
REAR HUB
Novatec D462SB, 12x148mm 32H, Center Lock
RIM
Entity XL2 Disc, Double Wall Alloy Rims, 30mm Internal Width, Tubeless Tape Installed **
TYRE
WTB Trail Boss 27.5 x 2.25/29 x 2.25 *
CONTACT POINTS
HANDLEBAR
Entity Xpert Alloy 740mm
SADDLE
Entity Void, Steel Rail
SEATPOST
Entity Expert, Zero Offset, 27.2x350mm
STEM
Entity Xpert, Alloy 60mm
WEIGHT
BIKE WEIGHT
26lbs (Size L)

Geometry

  S M M L XL
Wheel Size 27.5" 27.5" 29" 29" 29"
Rider Height 5'2"-5'7" 5'5"-5'9" 5'6"-5'10" 5'10"-6'1" 6'1"-6'5"
(A) Stack 596 615 633 651 670
(B) Reach 410 430 430 450 470
(C) Head Tube Angle 67° 67° 67° 67° 67°
(D) Head Tube Length 100 120 100 120 140
(E) Seat Tube Angle 73° 73° 73° 73° 73°
Seat Tube Angle Effective 75° 75° 75° 75° 75°
(F) Seat Tube Length 380 420 420 460 500
(G) Top Tube Effective 569 594 597 621 649
(H) Bottom Bracket Height 308 308 307 307 307
(I) Bottom Bracket Offset 45 45 65 65 65
(J) Chainstay 425 425 435 435 435
(K) Wheel Base 1106 1134 1149 1176 1204
(L) Standover Height 690 729 730 763 779
Handle Bar Width 740 740 740 740 740
Fork Travel 120 120 120 120 120
Crank Length 170 170 170 175 175

* All lengths in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4

Suspension Setup

Compare this bike

Open Box Polygon Siskiu T8 - Mountain Bike
Siskiu T8
$1,799.99
  • Description
    The Polygon Siskiu T8 is the ultimate all-mountain shredder, boasting 135/140mm of travel, a playful trail geometry, and a capable Fox Float DPS/34 Rhythm suspension combo. Shimano's SLX 12-speed drivetrain and 4-piston brakes deliver reliable performance for conquering any trail.
  • FRAMESET
    frame
    N/A
    headset
    N/A
  • SUSPENSION
    fork
    N/A
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    N/A
    front derailleur
    N/A
    shifter
    N/A
    crank
    N/A
    chainring
    N/A
    cassette
    N/A
    chain
    N/A
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Shop Now
Polygon Syncline C5 - Carbon Mountain Bike
Syncline C5
$1,799.99
  • Description
    The Syncline C5 features a carbon fibre frame and comes loaded with 120mm FOX 32 forks, Shimano 12-Speed SLX drivetrain, and Shimano MT401 hydraulic disc brakes riding on Entity’s XL2 TLR wheels with WTB Traill Boss 2.25” tyres.
  • FRAMESET
    frame
    ACX XC Performance Carbon Fibre, Pressfit BB92, Internal Cable Route, Boost 12x148mm Rear Thru-Axle
    headset
    N/A
  • SUSPENSION
    fork
    Fox 32 Rhythm 120mm Travel, Rebound & Sweep Adjustment, Tapered, Boost Thru-Axle 15x110mm
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    Shimano SLX RD-M7100 Shadow Plus 12 Speed
    front derailleur
    N/A
    shifter
    Shimano SLX SL-M7100
    crank
    Shimano SLX FC-M7100 Chainwheel 32T
    chainring
    N/A
    cassette
    Sunrace MZ-800, 11-51T, 12-Speed
    chain
    KMC X12
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Polygon Siskiu D6 SE - Mountain Bike
Siskiu D6 SE
$1,299.99
  • Description
    The Polygon Siskiu D6 is a versatile full-suspension xc/trail bike designed for riders seeking performance and value. Featuring 120mm of travel, Shimano Deore 1x10 drivetrain with a wide 11-42T cassette, dropper post, and hydraulic disc brakes, it's ready to hit some singletrack!
  • FRAMESET
    frame
    N/A
    headset
    N/A
  • SUSPENSION
    fork
    N/A
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    N/A
    front derailleur
    N/A
    shifter
    N/A
    crank
    N/A
    chainring
    N/A
    cassette
    N/A
    chain
    N/A
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Shop Now
Polygon Premier 24 XC - Kids Mountain Bike
Premier 24 XC
$399.99
  • Description
    The Polygon Premier 24” XC features a lightweight aluminum frame, Suntour Suspension, Shimano Tourney 1x7-Speed, V-brakes and Kenda Small Block 8 tires.
  • FRAMESET
    frame
    N/A
    headset
    N/A
  • SUSPENSION
    fork
    N/A
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    N/A
    front derailleur
    N/A
    shifter
    N/A
    crank
    N/A
    chainring
    N/A
    cassette
    N/A
    chain
    N/A
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Shop Now
Polygon Siskiu D24 - Kids Mountain Bike
Siskiu D24
$999.99
  • Description
    The Polygon Siskiu D24 is the perfect full-suspension mountain bike for young riders ready to conquer the trails. Upgraded for 2024 with hydraulic disc brakes, this bike also boasts a lightweight frame, adjustable air suspension, and reliable components - it's built for fun and progression.
  • FRAMESET
    frame
    N/A
    headset
    N/A
  • SUSPENSION
    fork
    N/A
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    N/A
    front derailleur
    N/A
    shifter
    N/A
    crank
    N/A
    chainring
    N/A
    cassette
    N/A
    chain
    N/A
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Shop Now
Polygon Relic 24 - Kids Mountain Bike
Relic 24
$499.99
  • Description
    The Polygon Relic 24” features a lightweight AL6 aluminum frame, Zoom HL 60mm suspension fork, Shimano Tourney 1x8-speed, disc brakes, and VeeTire Co. XCV tires.
  • FRAMESET
    frame
    N/A
    headset
    N/A
  • SUSPENSION
    fork
    N/A
    shock
    N/A
  • DRIVETRAIN
    rear derailleur
    N/A
    front derailleur
    N/A
    shifter
    N/A
    crank
    N/A
    chainring
    N/A
    cassette
    N/A
    chain
    N/A
  • E-SYSTEM
  • BRAKES
  • WHEELS
  • CONTACT POINTS
  • WEIGHT
  • ACCESSORIES
Shop Now
Customer Reviews
4.6 Based on 26 Reviews
5 ★
73%
19
4 ★
19%
5
3 ★
4%
1
2 ★
0%
0
1 ★
4%
1
Customer Photos

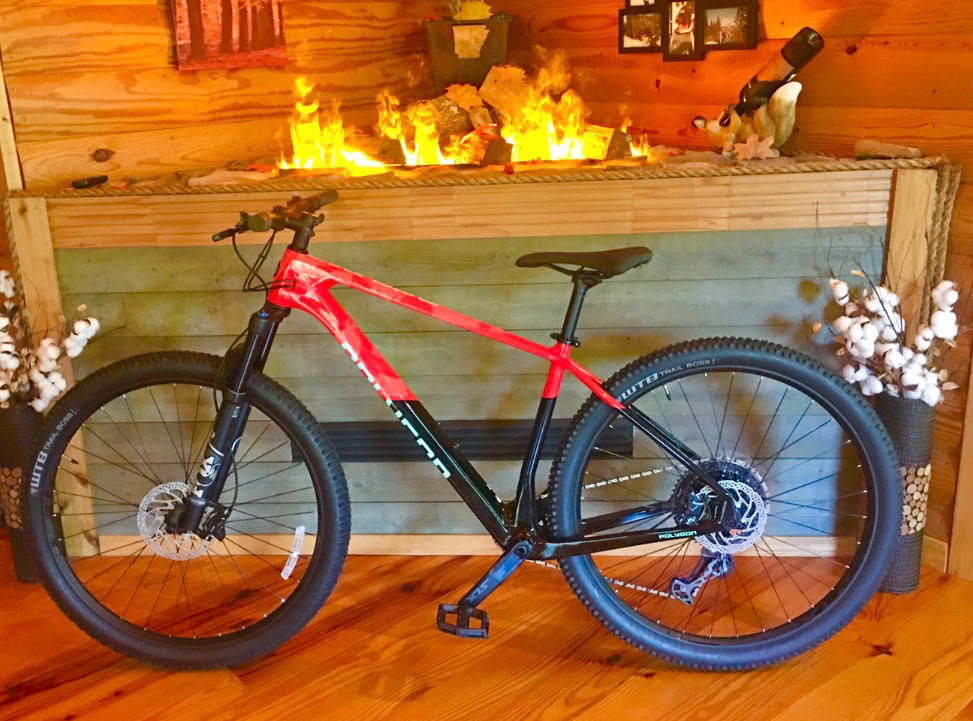

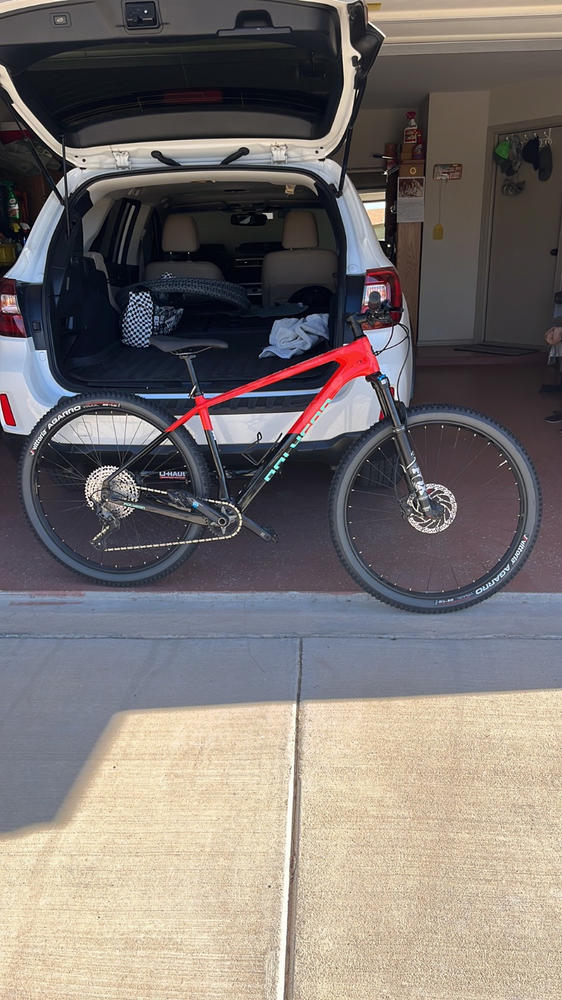

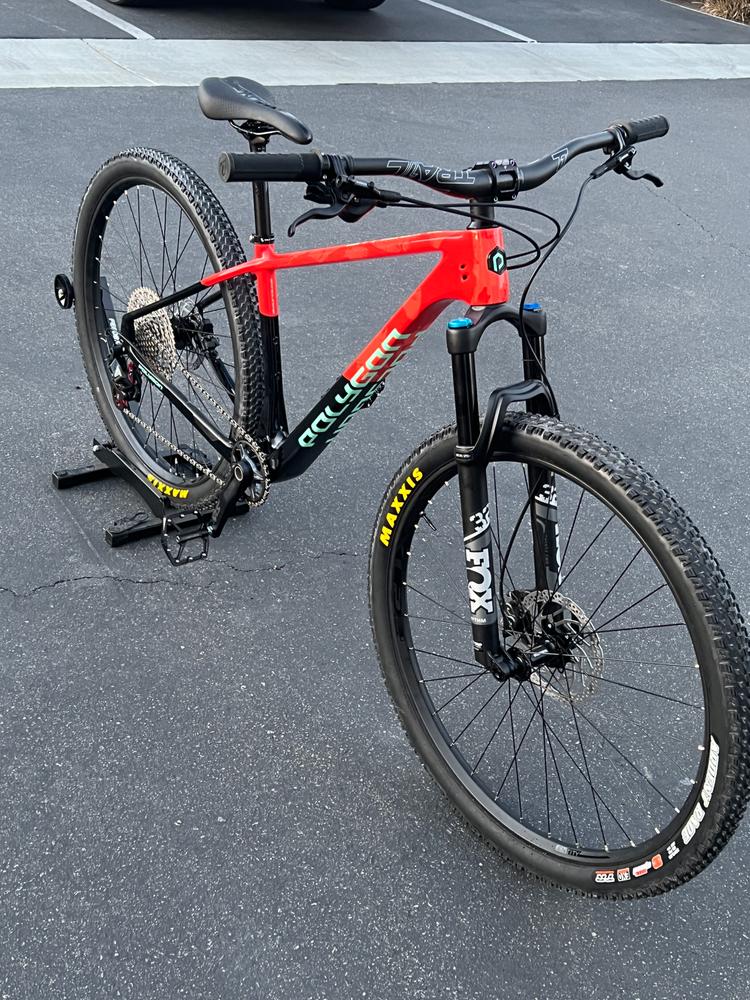

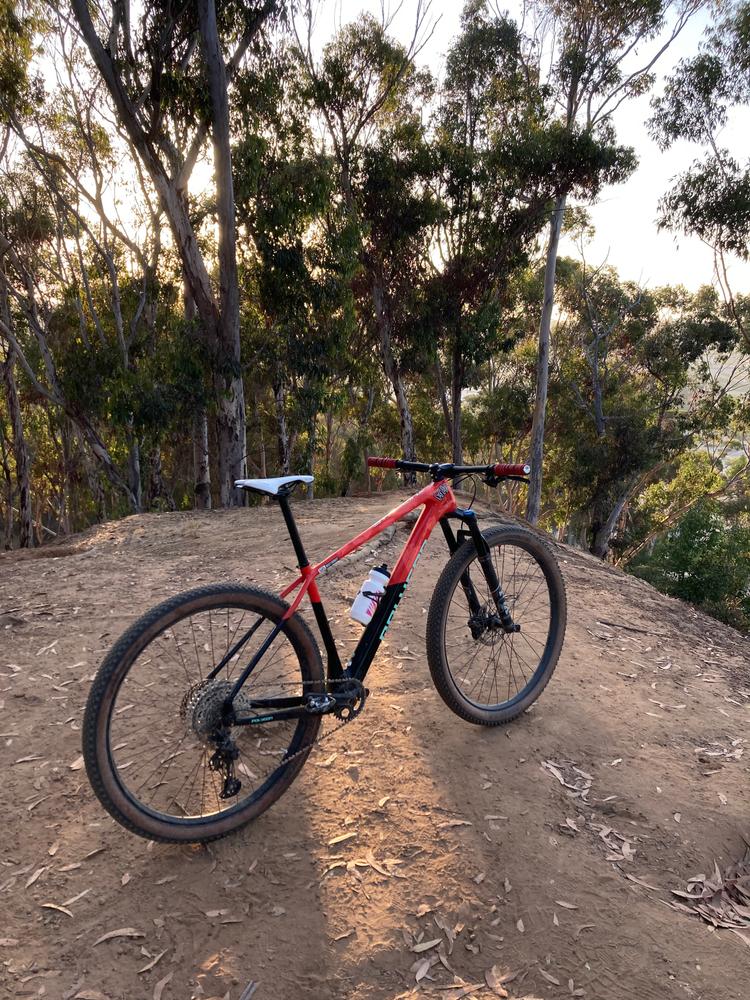

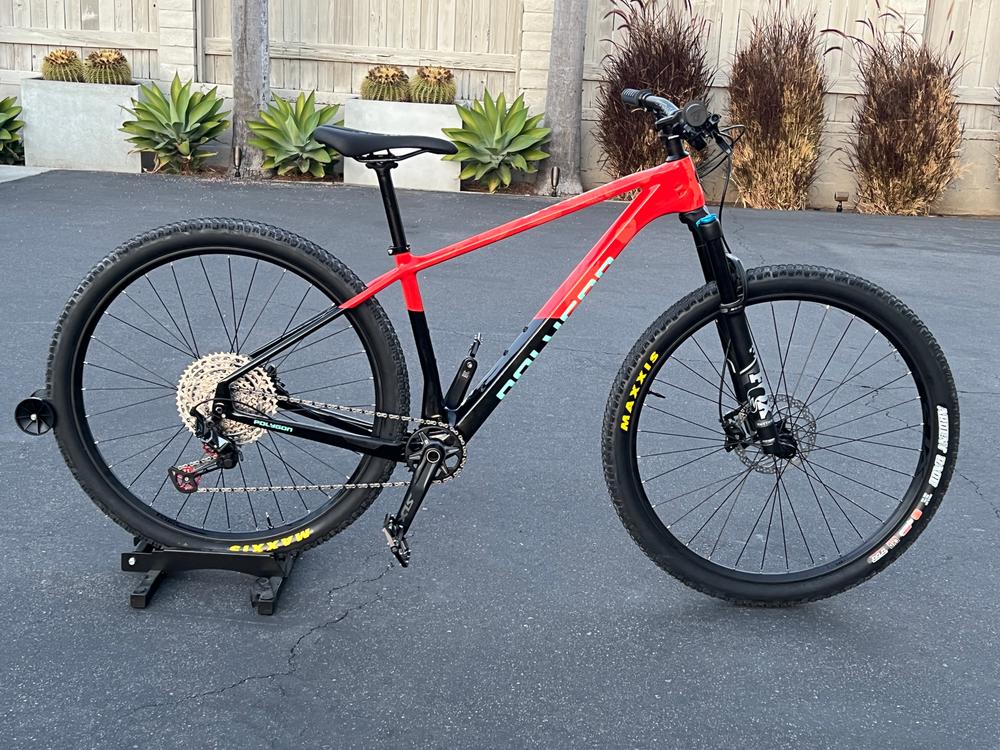

2024 Polygon Syncline C5 - Carbon XC Mountain Bike - Customer Photo From Riley E.i
