Description

INSPIRING THE NEXT GEN

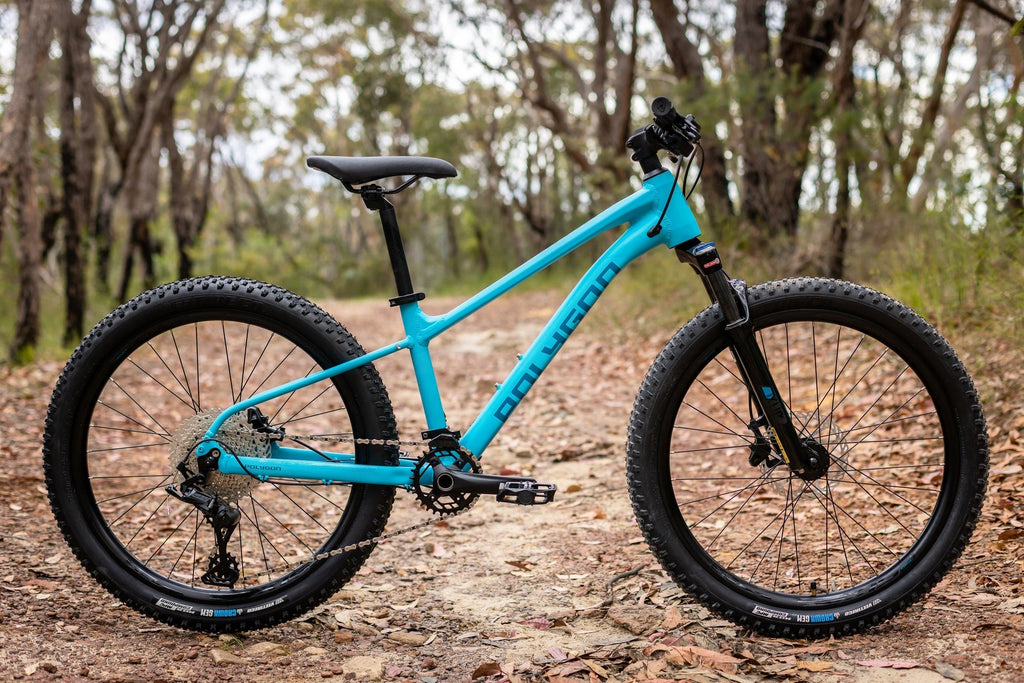

The Polygon Xtrada 24 is a capable and versatile kids' mountain bike designed for ages 7-11 or those within the height range of 120cm-150cm. It's lightweight alloy frame with modern geometry is perfect for exploring singletrack trails, conquering climbs, and tackling more technical cross-country and trail riding, all while building confidence and skills.

TRAIL READY

The Xtrada 24 is the next step-up in trail performance compared to the premier range. It boasts a 80mm Suntour XCR AIR fork for smooth, adjustable performance, a wide-range 10-speed microSHIFT drivetrain, and powerful Clarks hydraulic disc brakes for reliable stopping power. The grippy Vee Tire Crown Gem tires provide ample traction on any trail.

30 YEARS OF EXPERIENCE

Polygon is a factory-direct brand with over 30 years of experience crafting high-performance bikes at competitive prices. Vertically integrated manufacturing ensures quality and cost savings. Their mountain bikes have been tested on the world stage at events like Redbull Rampage and the World Cup circuit, boasting a 5-year frame warranty for peace of mind.

INDUSTRY REVIEWS

"If your young grom is ready to hit more challenging trails, but you’re not quite ready to spend top dollar, the Polygon Xtrada 24 offers the perfect mix of quality components and a lower price." - Two Wheeling Tots

HYDRAULIC BRAKES

Tektro hydraulic brakes provide loads of power and control plus they are easy to reach for small hands thanks to specially designed short throw levers.

10-SPEED MICROSHIFT

10-Speed Advent gears from Microshift offer a massive gear range with a 30t chainring up front and an 11-42t on the rear. Perfect for getting up, down and all around the mountain.

THE CROWN GEM

Vee Tire’s Crown Gems feature a unique tread pattern with raised side knobs for cornering control and centre knobs for added traction helping them to ride as fast and comfortably as their little hearts desire.

AIR SUSPENSION

The Suntour XCR AIR fork with 80mm of travel smooths out bumps and enhances control on rough trails. The air spring is adjustable to match your child's weight, ensuring a comfortable and responsive ride.

UPGRADE READY

The Xtrada 24's lightweight aluminium frame is built tough and features a tapered headtube and internal routing, ready for a future dropper post upgrade. This solid foundation allows the bike to grow with your child's skills and confidence.

Components

FRAMESET
FRAME
ALX 6061 Aluminum Frame, Smooth Welding Technology, Internal Cable Routing, Dropper Post Compatible
HEADSET
Zero Stack w/ Caged Bearing, ZS 44/28.6 | ZS 56/30
SUSPENSION
FORK
Suntour XCR AIR, 80mm Travel, Lockout Adjuster, Straight Steerer, QR Axle
DRIVETRAIN
REAR DERAILLEUR
Microshift RD-M6205GM 10-Speed
SHIFTER
Microshift SL-M9505 10-Speed Trigger
CRANK
Prowheel charm 30T, Crank arm: 140mm
CASSETTE
Sunrace CSMS3 10-SPEED 11-42T
CHAIN
KMC X10 10-Speed
BRAKES
ROTOR
Clarks 160mm 6B
WHEELS
REAR HUB
Formula DC-1422 QRx135mm 32H 6B
RIM
Double-wall, 30mm internal width *
TYRE
Vee Tire Crown Gem 24x2.25", MPC Compound, Wire bead *
CONTACT POINTS
HANDLEBAR
Entity Expert, W: 640mm, BB: 31.8mm, R/D: 20mm, B: 6 degree
SADDLE
Black, Seel ø7mm
SEATPOST
Entity Expert, 27.2x350mm
STEM
Entity Expert, EXT: 45mm, BB: 31.8mm, R/D: 3 degree

Specs are subject to change based on availability.

Geometry

  One size
Rider height 4"1-4"11
(A) Seat tube length  321
(B) Seat tube Angle 75°
(C) Effective seat tube angle 70°
(D) Head tube length 90
(E) Head tube angle 65°
(F) Effective Top Tube 490
(G) BB Height 288
(H) BB Offset 30 (Drop)
(I) Chainstay  400
(J) Chainstay 410
(J) Wheel Base 1028.28
(K) Frame Reach 345
(L) Frame Stack 540.5
(M) Standover Height 583.3

* All lengths in mm

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your 2024 Polygon Xtrada 7 1x12

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4
