Description
READY FOR ROWDY
The little brother to the Onyx DC, Onyx SC D1 is our top of the line enduro race fork with up to 180mm of travel. Featuring the proven D1 damper, high speed compression, low speed compression, rebound and externally adjustable OTT, Onyx SC D1 can be completely adjusted and fine tuned to the rider’s preference. With 36mm stanchions and our stiffest chassis yet, riders can charge hard into the roughest sections with confidence.
COMPRESSION BLADDER
At the heart of the damper is our compression bladder. An industry exclusive feature that surrounds a bladder with a large volume of oil and compresses it throughout the entire stroke. This provides unrivaled small bump sensitivity, durability, and damping consistency for long rides in rough conditions.
- No stiction
- Large oil volume
- Consistent Damping
- Extremely Durable
- Unique Ride Characteristics
OTT OFF THE TOP ADJUSTER
Our industry exclusive OTT feature really sets DVO product apart from anything else. It allows you to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise. You really do get the best of both worlds.
The OTT feature works by using a 5mm allen key to externally add or remove preload on a coil negative spring. Once you're about 30% of the way through the travel, the OTT spring is completely disengaged and you get into the positive air spring which controls your mid-stroke and bottom out. Set your air pressure for how you want the fork to feel in the mid to end stroke and fine tune your small bump sensitivity with the OTT feature.

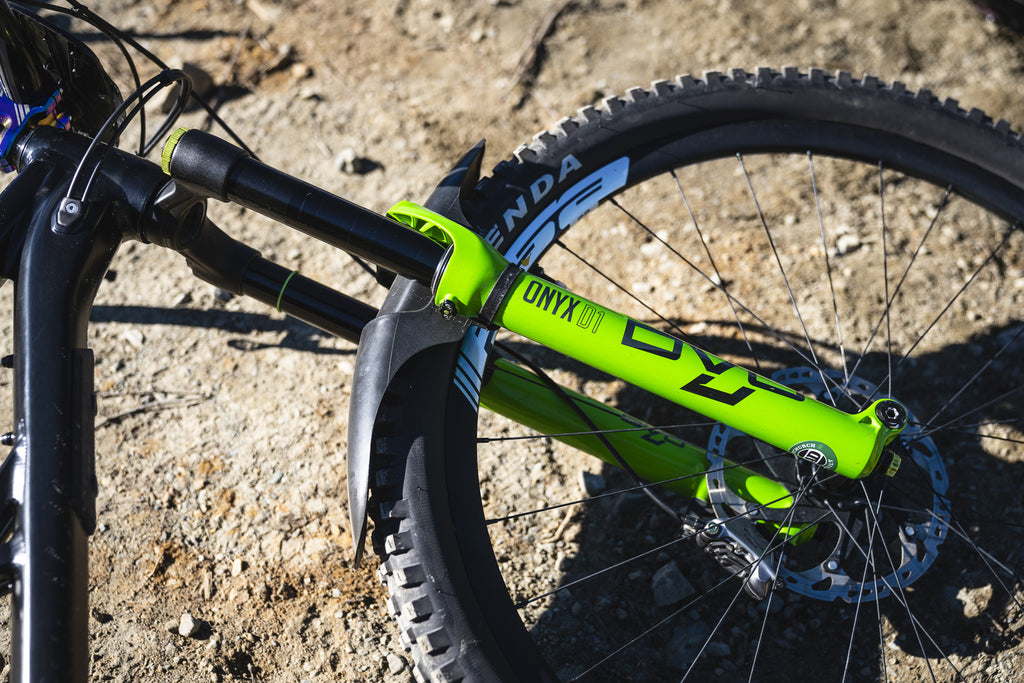

INTEGRATED FENDER
For a clean and polished look that both functions and looks killer. A fully integrated fender comes with your fork for those sloppy days on the mountain!
SPECS
ADJUSTMENTS:
High/Low Speed Compression | Rebound | OTT
TRAVEL RANGE:
160mm
STARTING WEIGHT:
29 -2250g.
OFFSET:
29 -44mm
AXLE TO CROWN:
29 -592mm
Measurements at max travel
STANCHIONS:
36mm Tapered Alloy
WHEEL SIZE:
29
AXLE
15mm Bolted- Boost Spacing
BRAKE MOUNTING
Direct Mount 180mm
COLOR OPTIONS:
Black
