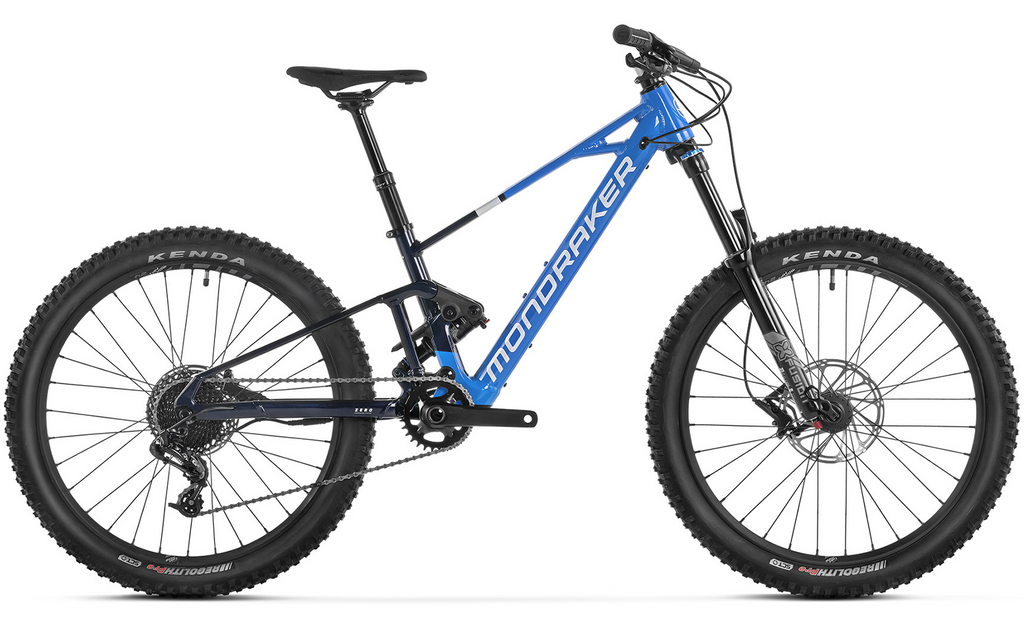

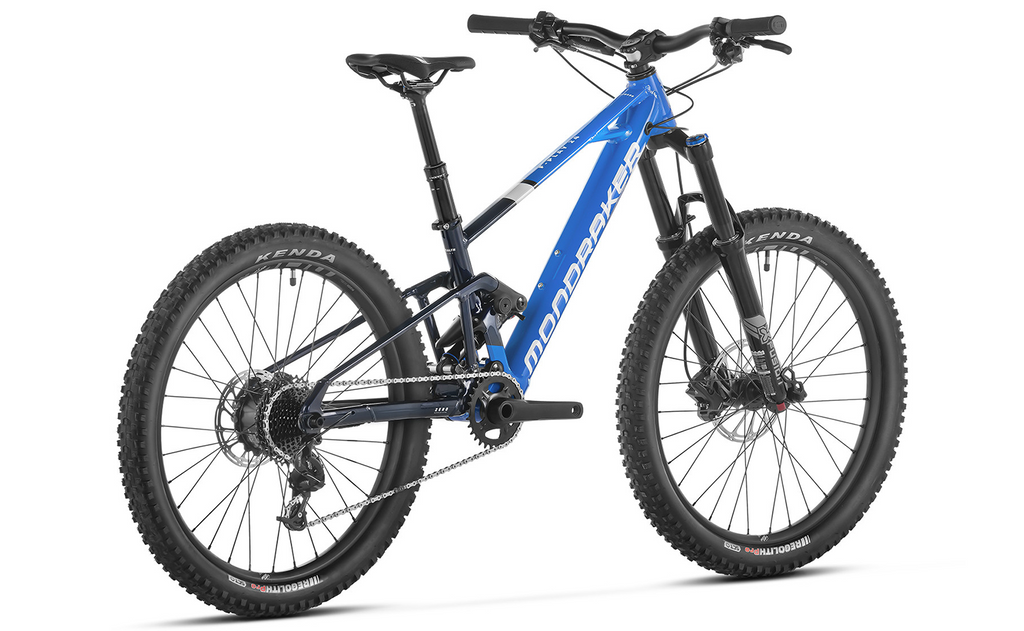

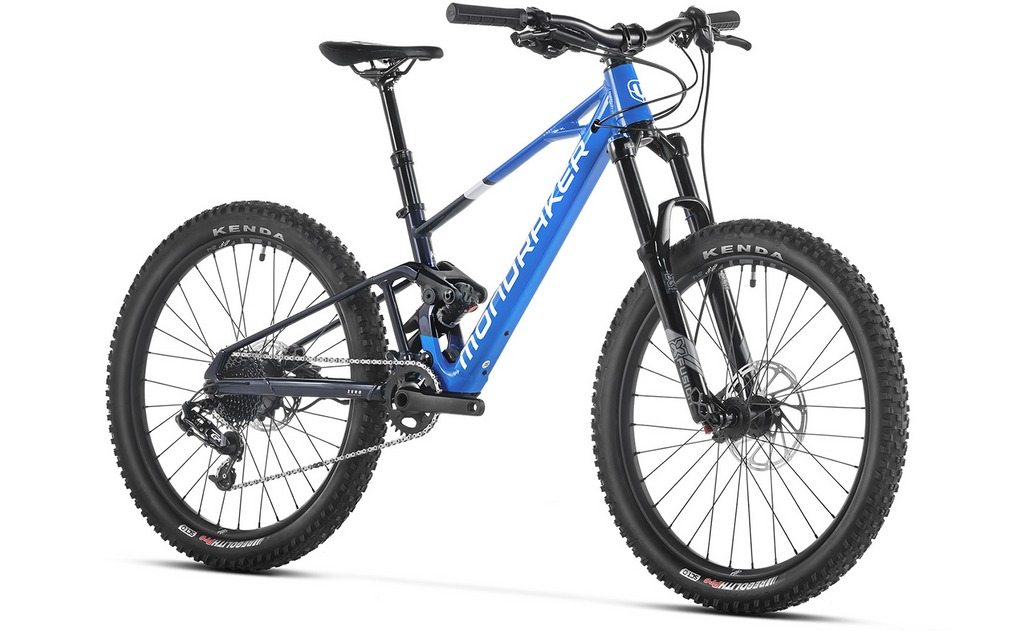

Mondraker F-Play 24 Kids - E-Mountain Bike
Mondraker F-Play 24 Kids - E-Mountain Bike
Mondraker F-Play 24 Kids - E-Mountain Bike
Mondraker F-Play 24 Kids - E-Mountain Bike
Mondraker F-Play 24 Kids - E-Mountain Bike
media.alt
media.alt
media.alt
media.alt
media.alt

Description

EBIKE - NORMAL FEEL

Developed alongside the F-Trick range to ride as closely as possible to a non-ebike. These bikes share the same kinematic structure, Updated Zero Suspension System, suspension travel, and a frame design that delivers lightness, agility, and responsiveness, making them nearly indistinguishable from traditional bikes.

SLEEK FRAME DESIGN

Features a minimalist frame with a stylized downtube housing a 250Wh battery. Its design incorporates Mondraker's signature ‘window’ at the junction of the headtube, downtube, and top tube. Crafted entirely from Alloy Stealth Evo, the frame is both sleek and robust.

UPGRADED SUSPENSION

The F-Play range has received significant fork upgrades, with the 24” model now offering 120mm of travel (up from 100mm) and the 26” model featuring 140mm (up from 120mm). These adjustments enhance the ride quality and adaptability of each bike size, making them more capable on the trails.

UPDATED ZERO SYSTEM

Incorporates the latest version of Mondraker’s Zero Suspension System, shared with models like the NEAT and F-PODIUM. This update improves acceleration, feedback, and pedaling efficiency, ensuring every stroke counts. Additional benefits include improved sensitivity, more progressive kinematics, a lighter yet stiffer system, reduced unsprung weight, and greater seatpost insertion depth.

POWERFUL MAHLE SYSTEM

The F-Play is powered by the Mahle E-Bikemotion X35 system, offering a 40Nm motor paired with a 250Wh internal battery for seamless pedal assist.

CUSTOMIZABLE ASSIST MODES

Choose from three assist modes—Eco, Urban, and Sport—and personalize your ride using the Mahle MySmartbike app for a tailored experience.

EXTENDED RANGE CAPABILITY

Go further with the optional 210Wh range extender available on the F-Play 26”, perfect for longer adventures.

FORWARD GEOMETRY

The F-Play bridges the gap between kids' and adult bikes with Forward Geometry, offering advanced tech and a perfect fit for younger riders.

HIGH-PERFORMANCE COMPONENTS

Equipped with 2.4” tires, an ONOFF Pija dropper post, a 30mm stem, and a 1x chainset with UDH mech hanger, this bike ensures premium performance.

Components

FRAMESET
FRAME
F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
HEADSET
Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
SUSPENSION
FORK
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
SHOCK
X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
DRIVETRAIN
REAR DERAILLEUR
Sram GX, 10s, short cage, X-actuation 1:1
SHIFTER
Sram trigger GX 10s, X-actuation 1:1
CRANK
Samox DM 30T steel, 152mm
CHAINRING
30T, steel
CASSETTE
Sram PG 1020 11-36T, 10s
CHAIN
Sram PC1031 10s, Powerlock
E SYSTEM
BATTERY
Mahle-Ebikemotion Internal 250Wh
COMPUTER
Mahle-Ebikemotion
MOTOR
Mahle-Ebikemotion X-35
DISPLAY
Mahle-Ebikemotion
BRAKES
FRONT BRAKE
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
ROTOR
Sram Level, Centerline 180mm front, 160mm rear IS 6 bolts
WHEELS
FRONT HUB
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
REAR HUB
Mahle-Ebikemotion X-35, HG freehub
RIM
MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
TYRE
Front: Kenda Regolith 24x2.4 120TPI, Folding TLR Rear: Kenda Regolith 24x2.4 120TPI, Folding TLR
MAX TYRE SIZE
24x2.4
INNER TUBE
Folding TLR
CONTACT POINTS
SADDLE
SDG Fly JR
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 100mm
HANDLEBAR
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
PEDALS
SDG Slater JR
WEIGHT
BIKE WEIGHT
35.7 lbs

Geometry

Frame Size F-Play 24
Rider Height 4'5" to 5'1"
A Seat Tube Length 12.60"
B Top Tube Length 20.67"
C Bottom Bracket Drop -0.39"
D Bottom Bracket Height 11.61"
E Chainstay Length 16.54"
F Seat Tube Angle 71°
G Effective Seat Tube Angle 76°
H Head Tube Angle 67°
I Fork Offset 1.54"
J Wheelbase 41.34"
K Head Tube Length 3.54"
L Reach 14.76"
M Stack 20.20"



*Measurements are in inches.
