Description

COMFORT-DRIVEN DESIGN

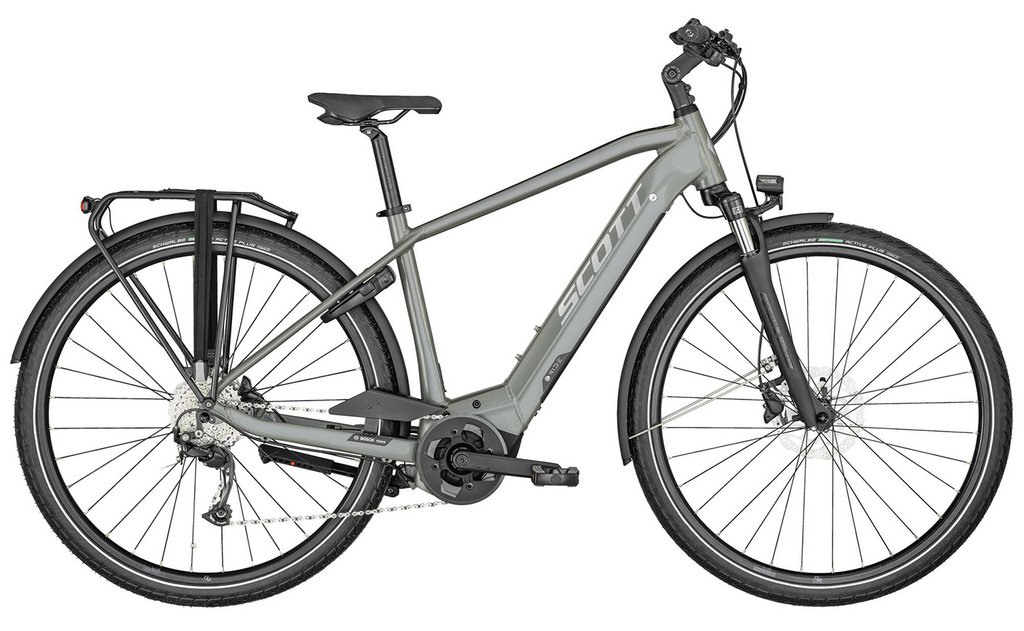

The Sub eRIDE 6061 alloy frame is designed for comfort, complemented by a wide saddle and high cockpit. This bike ensures that you can ride longer without discomfort, making it ideal for city commuting or weekend adventures.

POWERFUL BOSCH MOTOR

Equipped with a Bosch Active Plus motor and a 500Wh battery, the Sub Active eRIDE delivers reliable support on your rides. With speeds up to 25km/h (EU) or 20mph (US), this bike offers a perfect balance of performance and ease.

VERSATILE COMPONENTS

The bike features Shimano 9-speed drivetrain for smooth gear changes and Shimano disc brakes for consistent stopping power, ensuring you have the control you need in urban environments.

URBAN DESIGN

This bike is city-ready with integrated fenders, lights, a kickstand, and a rack with a SnapIt 2.0 system for easy luggage mounting. Designed with a wide saddle, a high cockpit, and front suspension for smooth rides, this bike delivers unparalleled comfort and convenience.

ALLOY FRAME & SUNTOUR FORK

The lightweight Sub eRIDE 6061 Alloy Frame and 63mm Suntour suspension fork ensure stability and comfort on uneven roads and light trails, offering a balanced and enjoyable ride.

BOSCH ACTIVE PLUS SYSTEM

Bosch Active Plus Motor / Bosch Power Tube 500Wh lithium-ion battery. Powerful support for effortless rides, ideal for city commutes and leisure. The Purion display provides real-time riding data, including speed, battery level, and more.

COMPLETE URBAN PACKAGE

The Sub Active eRIDE 10 is built for urban utility, featuring fenders, a sturdy rack with SnapIt 2.0 compatibility, a kickstand, and bright Lezyne front and rear lights for visibility.

SHIMANO 9-SPEED DRIVETRAIN

Shimano Alivio 9-Speed Drivetrain & Shimano BR-M200 Mechanical Disc Brakes The Shimano Alivio 9-speed drivetrain offers smooth shifting, while the disc brakes with 180mm/160mm rotors deliver reliable stopping power in all conditions.

WHEELSET AND TIRES

Equipped with robust Cross X17 rims and wide Schwalbe Energizer Active Plus tires, this bike offers excellent grip, durability, and comfort on various terrains.

Components

FRAMESET
FRAME
Sub eRIDE 6061 Alloy
HEADSET
GW semi integrated
SUSPENSION
FORK
SUNTOUR NEX-E25 DS QR 700C, TAPERED, 63mm Travel
DRIVETRAIN
REAR DERAILLEUR
Shimano Alivio 3100, 9 Speed
SHIFTER
Shimano Alivio 3100, 9 Speed
CRANK
Miranda, 172.5mm
CHAINRING
38T Chainflow / Chainprotector
CASSETTE
Shimano CS HG400, 11-36
CHAIN
KMC E9s NPBK
BRAKES
FRONT BRAKE
Shimano BR-M200 Disc
REAR BRAKE
Shimano BR-M200 Disc
ROTOR
180/F SM-RT10 and 160/R SM-RT10
WHEELS
REAR HUB
Shimano FHMT200B, 32H QR CL
RIM
Cross X17 Disc, 32h
TYRE
Schwalbe Energizer Active Plus, 700x50c
CONTACT POINTS
HANDLEBAR
Syncros UC3.0, 680mm, 10° bend
SADDLE
Syncros Capilano
SEATPOST
Syncros 3.0, 31.6mm, 350mm
STEM
Syncros UC 3.0 adjustable
PEDALS
Syncros SP-828
ACCESSORIES
KICK STAND
Ursus Mooi Central
FENDER MUDGUARD
Curana wide extruded fenders

Geometry



Size S M L XL
Recommended Height 5'2" – 5'7" 5'4" – 5'10" 5'7" – 6'1" 6'0" – 6'4"
Head Tube Angle 69.5° 70.0° 70.5° 70.5°
Head Tube Length 5.1 in 5.5 in 6.3 in 7.3 in
Top Tube Horizontal 22.8 in 23.6 in 24.4 in 25.2 in
Standover Height 30.5 in 31.7 in 32.7 in 34.2 in
BB Offset 3.0 in 3.0 in 3.0 in 3.0 in
BB Height 17.3 in 17.3 in 17.3 in 17.3 in
Wheel Base 45.0 in 45.2 in 45.9 in 46.7 in
BB Center to Top of Seattube 17.3 in 18.9 in 20.5 in 22.0 in
Seat Angle 74.5° 74.5° 74.5° 74.5°
Chainstay 18.9 in 18.9 in 18.9 in 18.9 in
Reach 15.9 in 16.6 in 17.2 in 17.7 in
Stack 24.8 in 25.2 in 26.1 in 27.0 in
Stem Length 4.3 in 4.3 in 4.3 in 4.3 in
Trail 3.5 in 3.4 in 3.2 in 3.2 in
