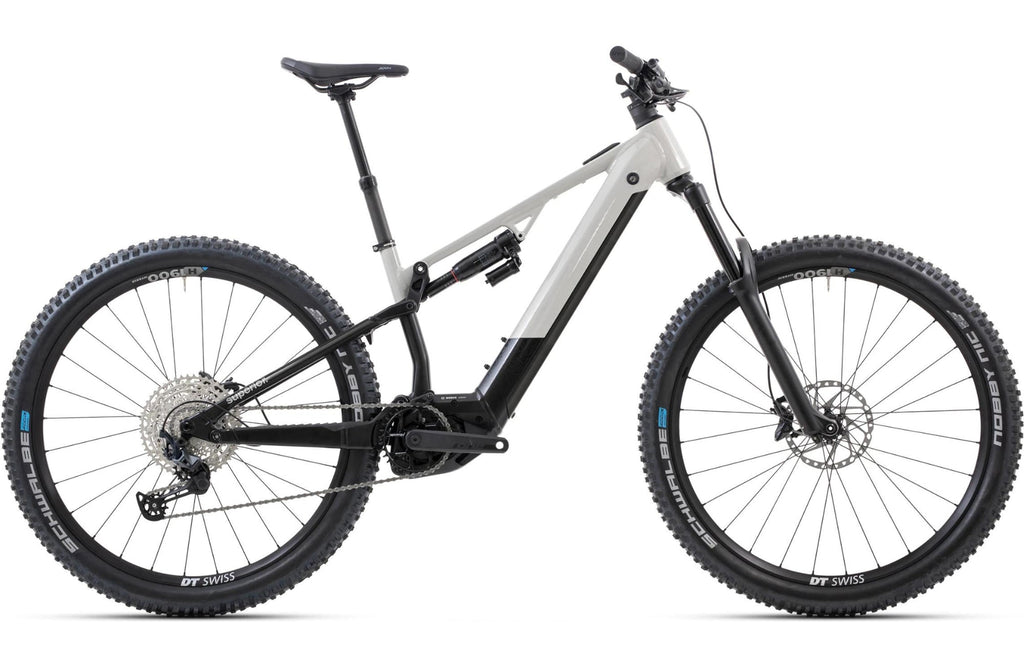

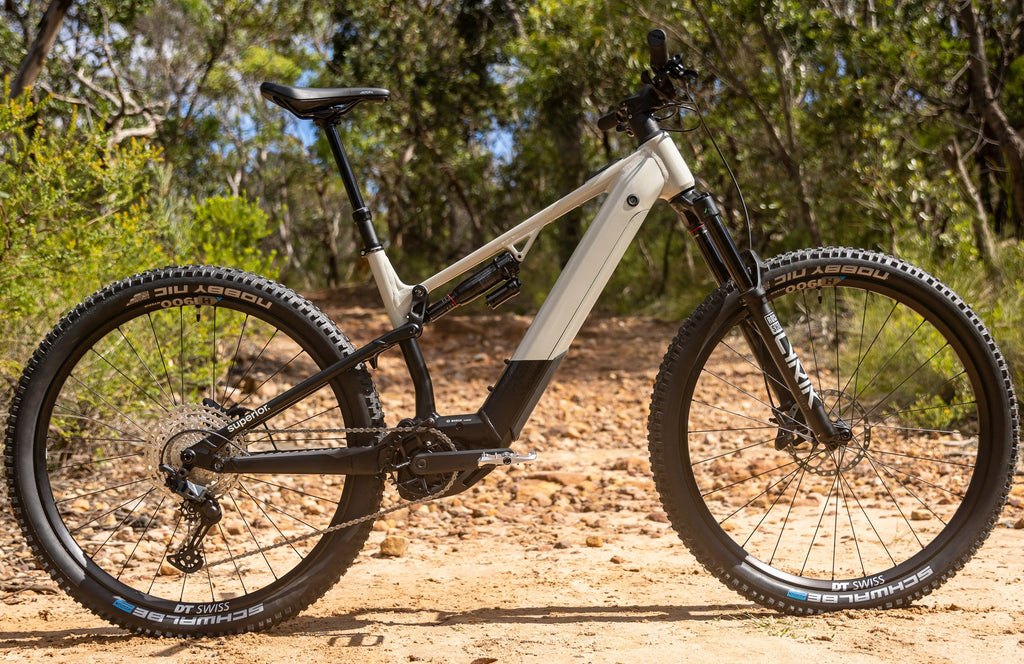

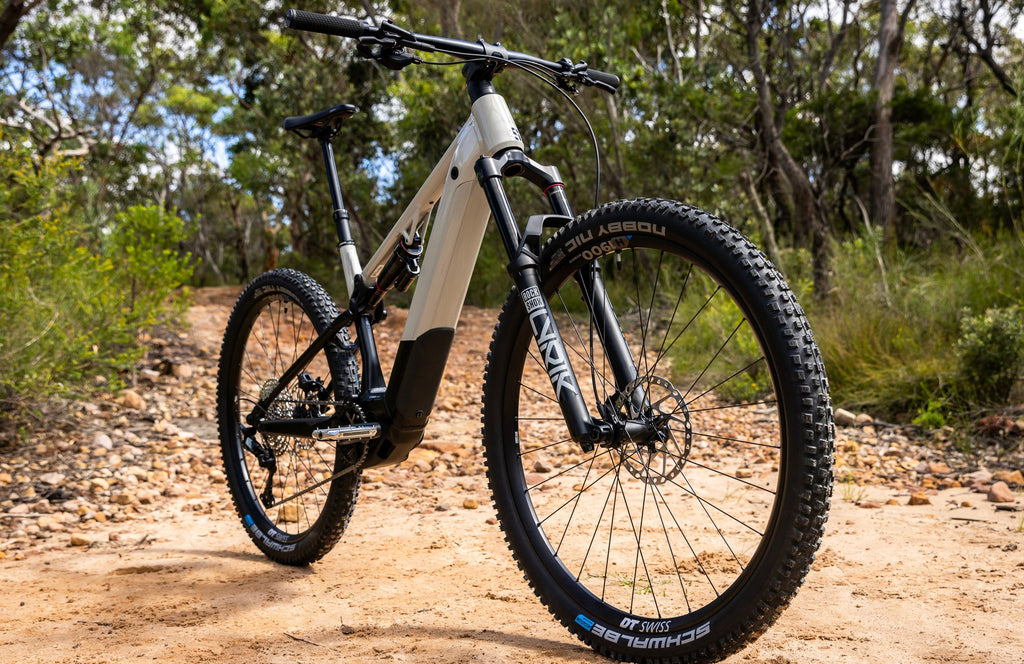

Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
Superior eXF 9039 B - Bosch E-Mountain Bike
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt

Description

GO FURTHER

Introducing the eXF 9039 B, your all-mountain companion crafted for limitless adventure and amplified fun. Powered by a Bosch CX motor with 600w of peak power and 85Nm of torque. Renowned for its reliability and smooth power delivery, the motor is powered by a massive 750Wh fully integrated battery with the capacity to ride up to 150kms in ECO mode.

WHY CHOOSE SUPERIOR?

Superior is a premier factory brand with complete oversight from design to production. This allows them to craft top-tier, innovative bikes that epitomize quality and affordability. With over 200,000 bikes produced annually for leading brands, Superior's expertise is undeniable. Ride alongside champions like 3-time world champion Ramona Forchini and the Official Bike Partner of the Gravel World Championship.

ALL MOUNTAIN GEOMETRY

Taking notes from modern enduro race bikes, the 160mm of front travel, roomy 485mm reach (size LG), and slack 64° head angle offer loads of stability on fast descents to attack the trail with confidence. The 160mm of rear travel and shorter 446mm chainstays by EMTB standards ensure that plenty of fun is still on tap for flowy trails.

INDUSTRY REVIEW

"Thanks to the 750Wh battery it’ll cover a lot of ground on a single charge, and the ride on the way down is well balanced to make for a solid machine to log some miles in varied terrain." - Loam Wolf

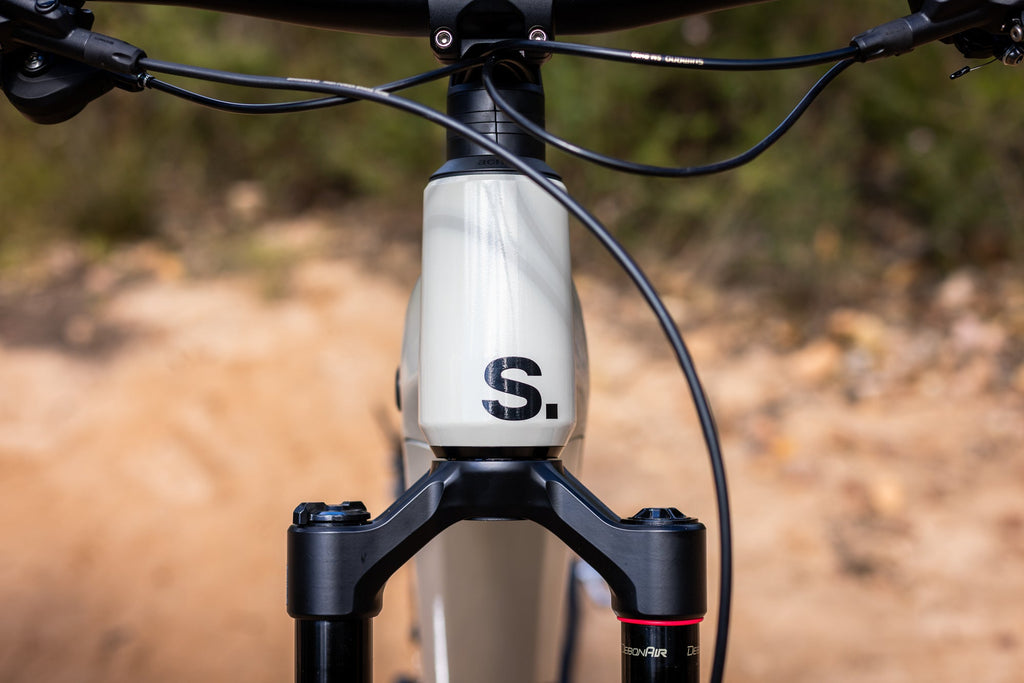

FRAME DETAILS

SUP's ultralight ALU 6 aluminium alloy frame is one of the lightest EMTB alloy frames on the market. It features a one-piece forged linkage, integrated cable routing, and boost spacing.

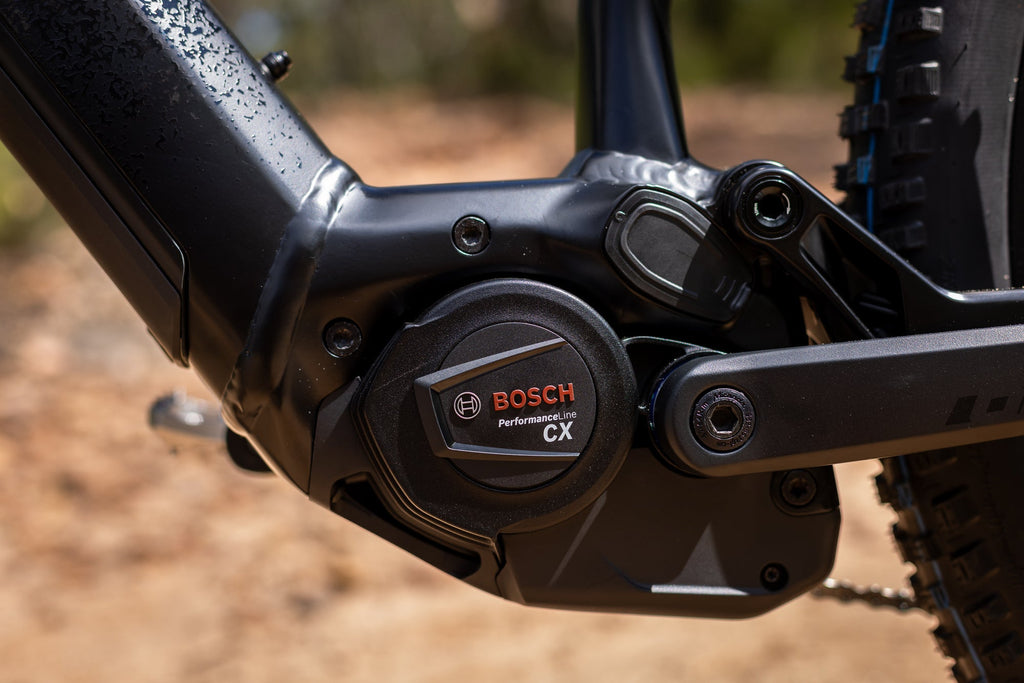

BOSCH!

Featuring 85 Nm of torque and 600w of peak power the Bosch Performance Line CX is a true powerhouse! The eXF 9039 B also comes loaded with a fully integrated Bosch 750Wh battery with enough charge for 150km.

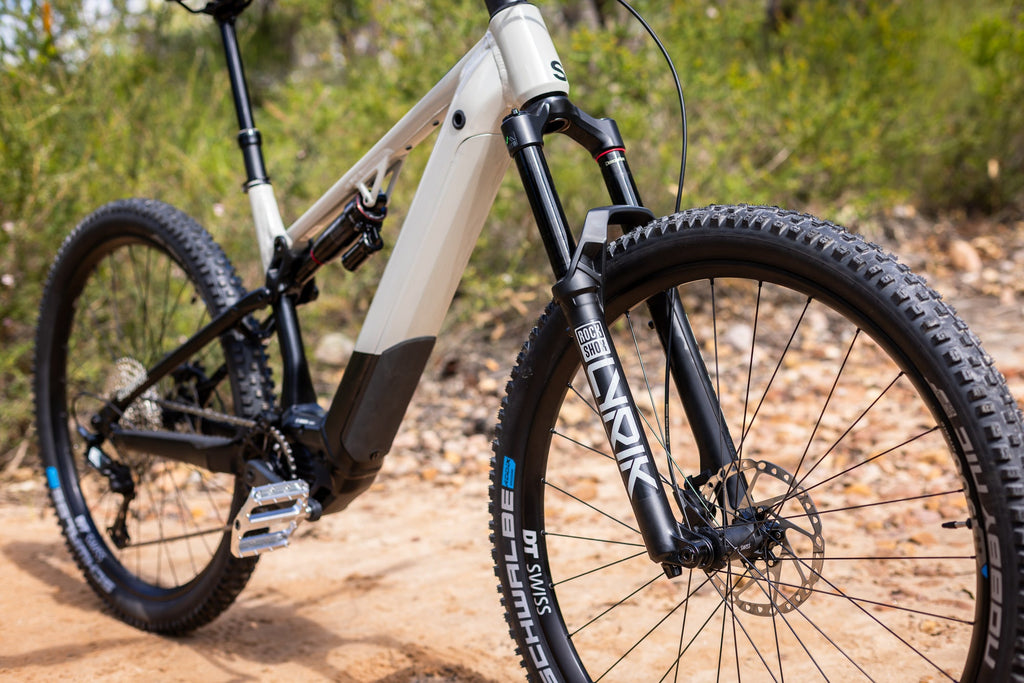

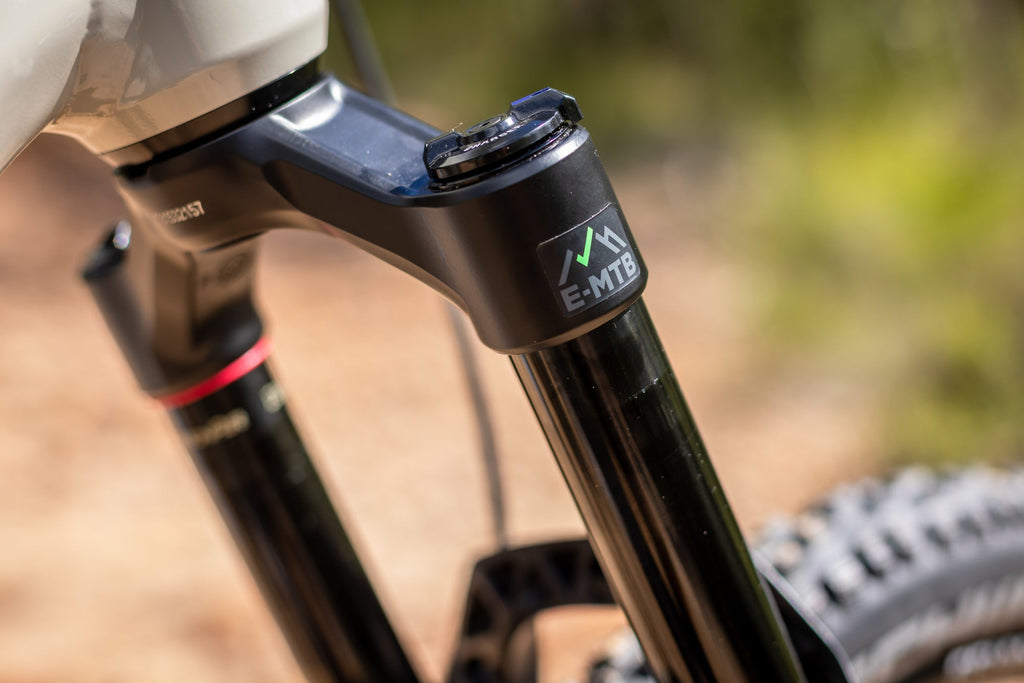

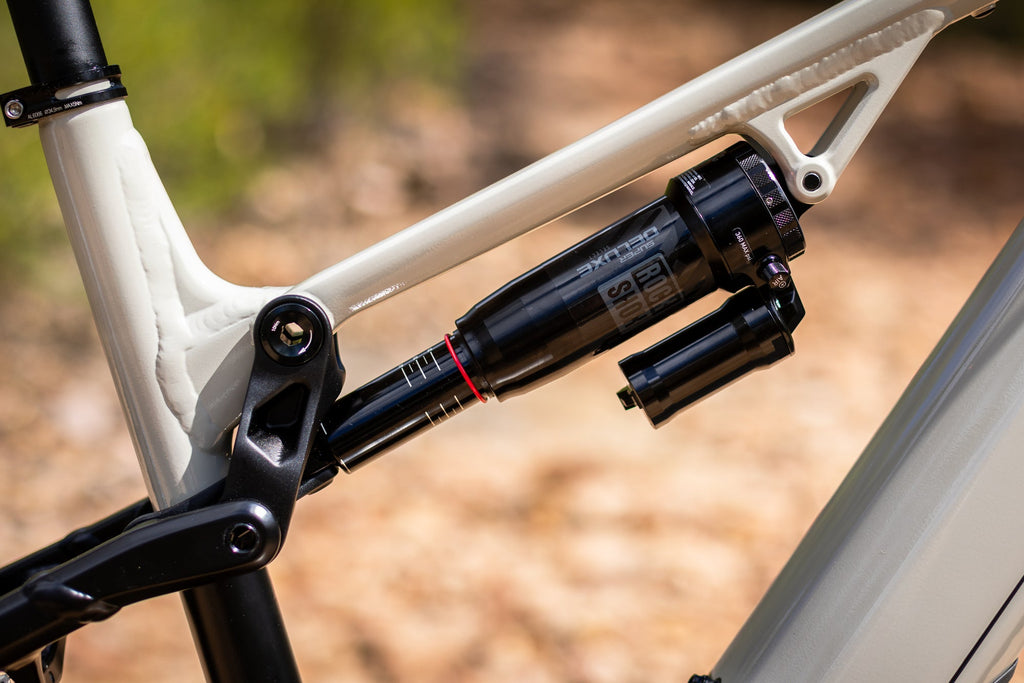

ROCKSHOX SUSPENSION

The eXF 9039 B features Lyrik Select RC forks with 160mm of travel, a Charger™ RC damper with LSC adjustment and a DebonAir™ C1 air spring, plus a Super Deluxe Select shock that features a DebonAir+ air spring.

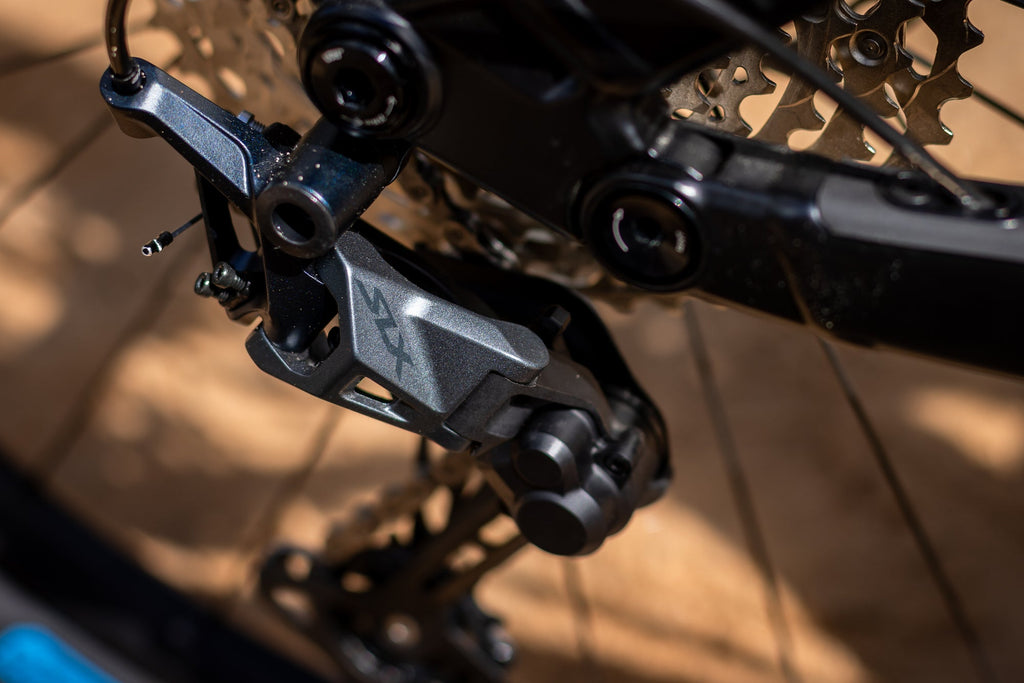

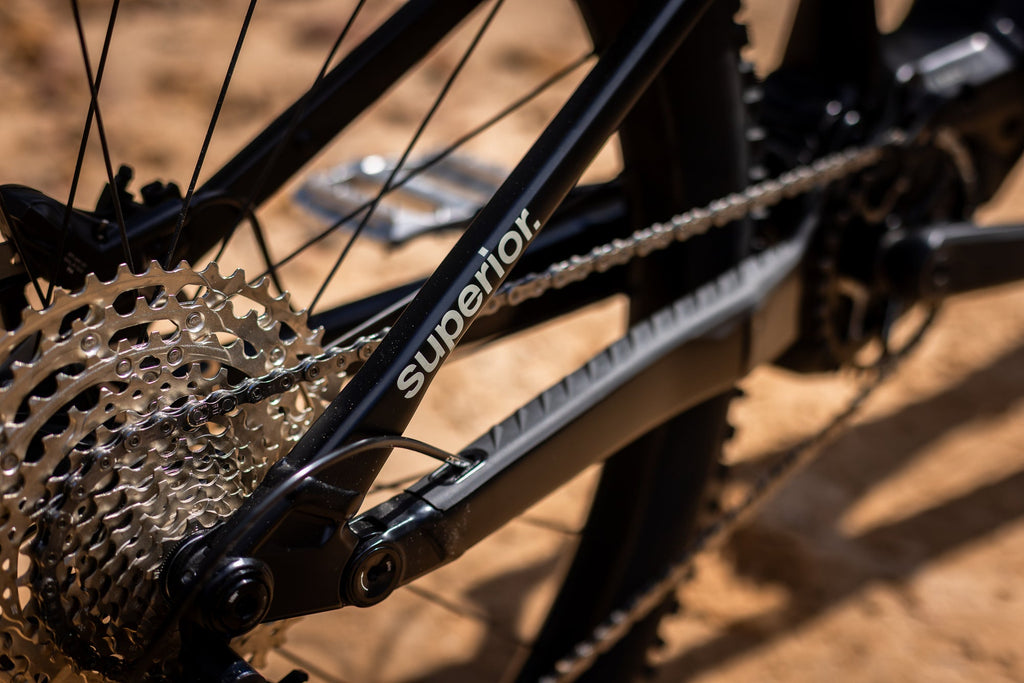

SHIMANO SLX/DEORE 1X12

The Shimano SLX/Deore 12-Speed drivetrain comes equipped with a 10-51T cassette and a 34T one by chainring. It features a Shadow+ derailleur with an inbuilt clutch for chain retention and a RapidFire+ shifter for quick gear changes.

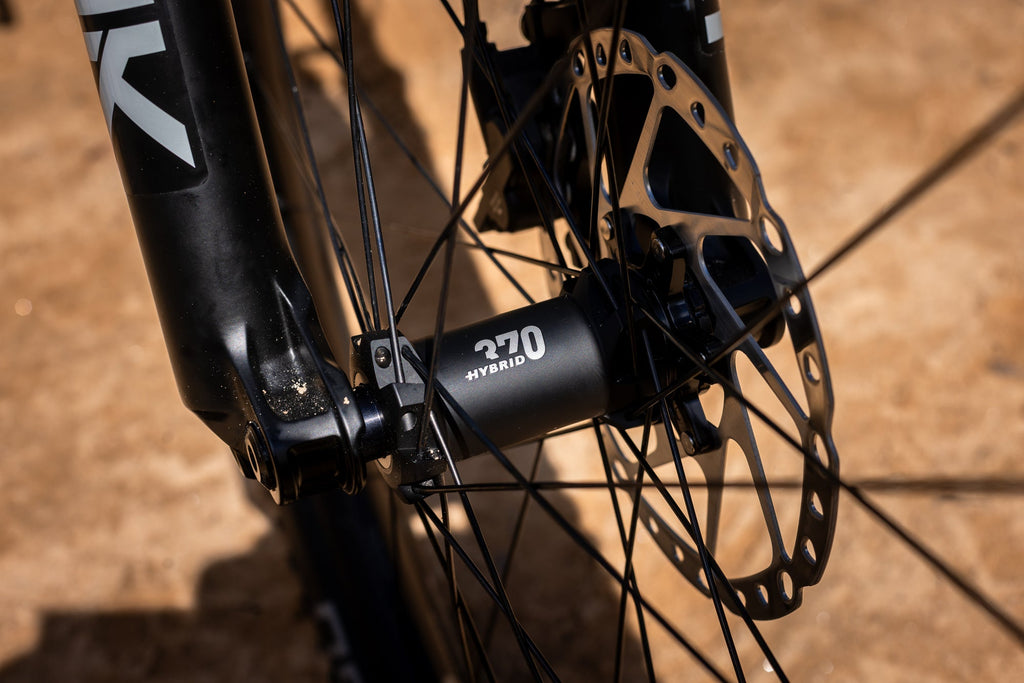

DT SWISS H1900

DT Swiss has long been making the highest quality and most reliable hubs, spokes and rims for every manufacturer since day dot, and the eMTB spec H1900 SPLINE TLR wheelset with 370 hubs, hybrid spokes, and alloy rims are no different.

Components

FRAMESET
FRAME
Alu X6 Ultralite MTB Trail Frame, 160 mm Rear Travel, BOSCH CX Performance 5G ready, Integrated 750Wh battery , 3D alloy one piece link, Alloy swingarm, Boost 148 mm, Inner cable routing
HEADSET
ACROS AZX-1051S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings
SUSPENSION
FORK
RockShox Lyrik Select RC, Tapered, DebonAir, 15x110mm axle, 160mm travel
SHOCK
RockShox Super Deluxe Select R, size 230x65mm
DRIVETRAIN
REAR DERAILLEUR
Shimano SLX RD-M7100, Shadow Plus Design
SHIFTER
Shimano Deore SL-M6100-IR, RAPIDFIRE Plus, 12speed
CRANK
ONE Race, Alloy
CASSETTE
Shimano Deore CS-M6100, 12-speed, 10-51T
CHAIN
Shimano Deore CN-M6100
E SYSTEM
BATTERY
BOSCH PowerTube, 750 Wh
MOTOR
BOSCH Performance Line CX, 85Nm
DISPLAY
BOSCH Mini Remote
CHARGER
BOSCH 4A
BRAKES
FRONT BRAKE
Shimano M6120, 4-Piston, Hydraulic Disc Brake, SM-RT64 180mm Rotors
REAR BRAKE
Shimano M6120, 4-Piston, Hydraulic Disc Brake, SM-RT64 180mm Rotors
WHEELS
FRONT HUB
DT Swiss H 1900 SPLINE®, CL, 15x110mm, 30mm Internal Width, Tubeless Ready
REAR HUB
DT Swiss H 1900 SPLINE®, CL, 12x148mm, Micro Spline Freehub, 30mm Internal Width, Tubeless Ready
TYRE
Schwalbe Nobby Nic Evo, SuperTrail, TL-Easy, 29x2.60", ADDIX SpeedGrip
CONTACT POINTS
SADDLE
Fizi:k Aidon X5, Alloy
SEATPOST
ONE Sport Dropper Post, Alloy, 30.9mm
HANDLEBAR
ONE Alloy, 12mm rise, 760mm, 35mm
GRIPS
ONE Race, Lock-On
STEM
ONE ICR, Alloy, 35mm, 0°
WEIGHT
BIKE WEIGHT
56.8 lbs (Size M)

Geometry

  M L XL
Rider's height in cm 5'7"-5'10" 5'10"-6'2" 6'2"-6'5"
(A) Stack 625 625 625
(B) Reach 465 485 505
(C) Head Tube Angle 64 64 64
(D) Head Tube Length 120 120 120
(E) Seat Tube Angle 77 77 77
(F) Seat Tube Length 420 440 490
(G) Top Tube Effective 610 630 650
(I) Bottom Bracket Drop 27 27 27
(J) Chainstay 446 446 446
(K) Wheel Base 1251 1271 1291
Handlebar Width 760 760 760
Stem Length 50 50 50
Crank Length 165 165 170



Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

How To Unbox Your Bosch E-MTB

Step 2

Dial In Your Suspension Setup

Step 3

Dial In Your Bike Fit

Step 4

Dial In Your Tyre Pressures

Step 5

Pre-Ride Check
