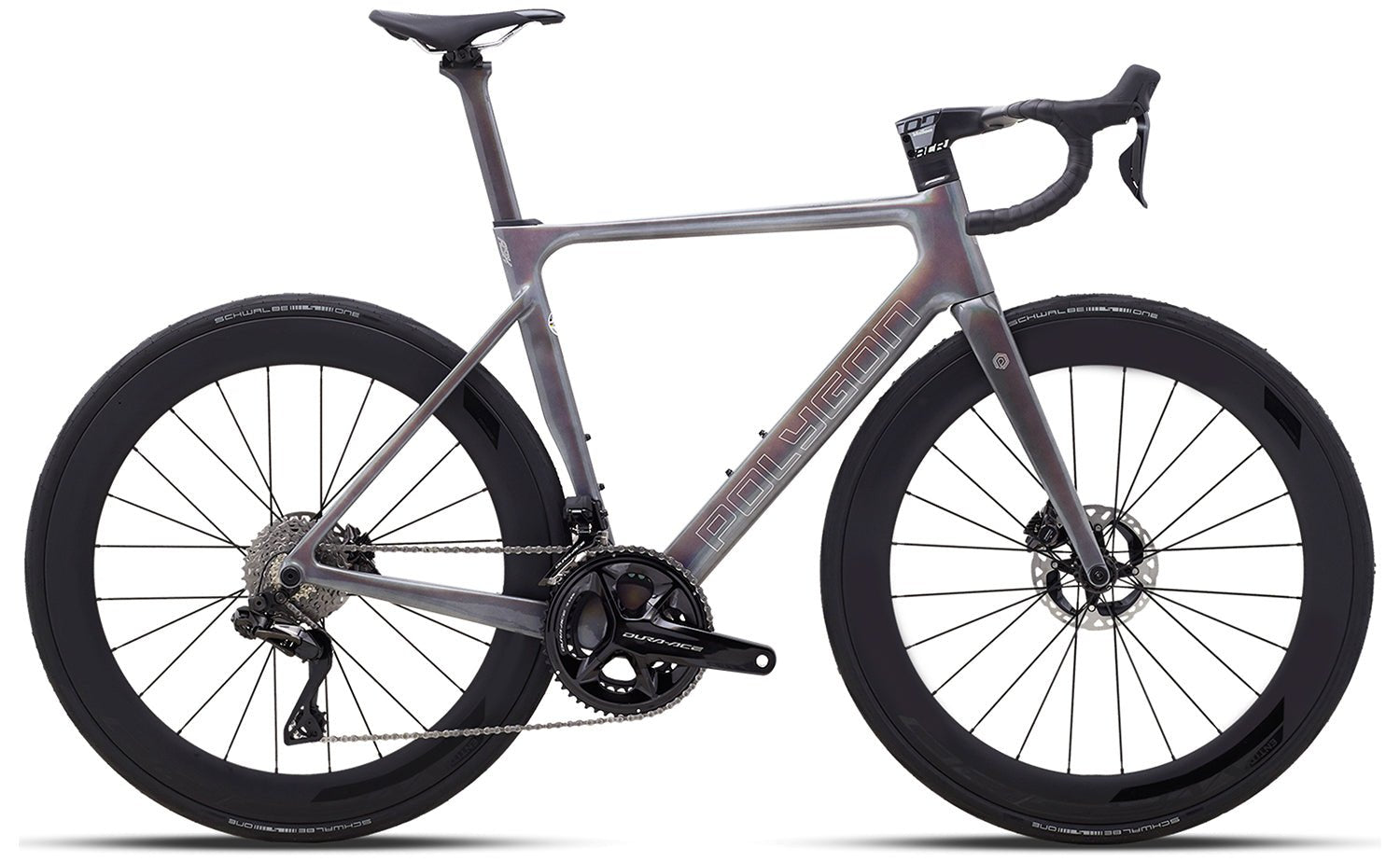

Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
Polygon Helios A9X - Dura-Ace Di2 Carbon Road Bike
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt

Description

PERFORMANCE AERO

The Polygon Helios A9X is a UCI-approved carbon aero race bike weighing just 7.7kg, this machine is engineered for speed and performance. Whether you’re an aspiring racer chasing the podium or seeking an aerodynamic lightweight ride, the Helios A9X delivers the speed and agility you need to beat PRs and the competition.

LOOKS FAST, FEELS FASTER.

The Helios A9X ACX carbon frame, weighing a mere 800g, is meticulously designed for aerodynamic efficiency, boasting a 31% reduction in drag over the previous generation. Wider clearance for 28c tyres enhances comfort without sacrificing speed, while reinforcements in the bottom bracket, chainstay, and thru-axles ensure that every watt of your effort translates into pure speed on the road.

A TRUSTED BRAND

Polygon boasts over 30 years of experience and is known for offering high-performance bikes at competitive prices. Polygon road bikes have led to numerous national titles and even a victory at the 2023 Tour De Taiwan. With a 5-year frame warranty, you can trust Polygon to deliver from the factory to the track.

INDUSTRY REVIEW

“Impressive value for money” - Ride Media

SHIMANO DURA-ACE Di2 GROUPSET

Enjoy lightning-fast, precise gear changes with a simple touch of the levers. Conquer any terrain, from challenging climbs to swift descents, with the wide-range 11-34T cassette and versatile 52/36T chainrings.

CARBON WHEELS

Experience a competitive edge with Entity WR5 tubeless-ready carbon wheels. The 50mm deep-section rim profile optimizes aerodynamics, slicing through the wind for increased speed.

MORE POWER

Upgrade your Helios A9X with the optional Shimano Dura-Ace power meter for precise performance tracking. Analyze your power output and pedal stroke to fine-tune your training and racing strategies, taking your cycling to the next level.

INTEGRATED

The fully integrated Vision Metron cockpit strikes the perfect balance between simplicity and aero engineering. It features an inbuilt GPS mount and full carbon construction.

Components

FRAMESET
FRAME
ACX Performance Carbon UCI Approved, Internal Cable Routing, Shimano KSMBB9241B Press Fit Bottom Bracket, 12x142mm Thru-Axle, Flat Mount Disc
SUSPENSION
FORK
ACX Performance Carbon UCI Approved, 12x100mm Thru-Axle, Flat Mount Disc
DRIVETRAIN
REAR DERAILLEUR
Shimano Dura-Ace Di2 RD-R9250, 12-Speed
FRONT DERAILLEUR
Shimano Dura-Ace Di2 FD-R9250, Braze-On
SHIFTER
Shimano Dura-Ace Di2 ST-R9270, 12-Speed
CRANK
Shimano Dura-Ace FC-9200, HollowTech 2, 12-Speed, XS-M:170mm, L-XL:172.5mm
CHAINRING
52/36T
CASSETTE
Shimano Dura-Ace CS-R9250, 12-Speed, 11-34T
CHAIN
Shimano CN-M8100, 12-Speed
BRAKES
FRONT BRAKE
Shimano Dura-Ace BR-R9270, Hydraulic Disc, 160mm Center Lock
REAR BRAKE
Shimano Dura-Ace BR-R9270, Hydraulic Disc, 140mm Center Lock
WHEELS
REAR HUB
Entity WR5 Carbon Disc, 900g, 21mm Internal Width, 50mm Depth, Novatec D792SB-X12 Hub, 24H, Stainless Straight Pull Butte Spokes, Tubeless Tape Installed / Shimano C60 Dura-Ace Carbon Disc, 858g, 21mm Internal Width, 60mm Depth, 24H, Tubeless Tape Installed
TYRE
Schwalbe One Addix TLE, 700x28C, Tubeless Ready
MAX TYRE SIZE
28c
INNER TUBE
Entity Inner Tube, 80mm Presta Valve
CONTACT POINTS
HANDLEBAR
Vision Metron 5D ACR Integrated, 400mm Width (XS-S), 420mm Width (M-L), 420mm (XL), 80mm Reach, 125mm Drop
SADDLE
Entity Flux2
SEATPOST
Polygon Carbon Aero Seatpost, 35x337mm (XS), 357mm (S-XL), 20mm Adjustable Offset
STEM
Vision Metron 5D ACR Integrated, 100mm Length (XS-S), 110mm Length (M-L), 120mm Length (XL), 6-Degree
WEIGHT
BIKE WEIGHT
17lbs (Size L)

Geometry

Size XXS XS S M L XL
Height (ft/in) 4'11" - 5'3" 5'1" - 5'5" 5'4" - 5'7" 5'6" - 5'9" 5'8" - 5'11" 5'11" - 6'2"
Seat Tube Length (F) 450 475 500 520 545 570
Seat Tube Angle (E) 75° 74.7° 74.3° 74° 73.7° 73.3°
Head Tube Length (D) 100 115 130 145 160 175
Head Tube Angle (C) 71.5° 71.8° 72° 72.3° 72.3° 72.8°
Effective Top Tube (G) 505.31 517.31 530.42 543.04 555.14 569.25
BB Height (I) 271 271 271 271 271 271
BB Offset (H) 73 73 73 73 73 73
Chainstay Length (J) 415 415 415 415 415 415
Wheelbase (K) 968.42 975.82 983.9 991.1 1000.62 1005.8
Frame Reach (B) 370 375 380 385 390 395
Frame Stack (A) 505 520.21 535.2 550.4 564.7 580.8
Standover Height (L) 715.04 739.4 763.21 780.8 802.52 824.28


*All lengths in mm unless otherwise stated

Assembly

Your bike needs minor assembly before riding; use the tools and videos included.

As a guide, it'll take 10-40min depending on whether you're an experienced bike assembler or have little to no mechanical experience.

Side Note: Your cables will stretch during the initial bed-in period and must be adjusted by an experienced mechanic around 150km of riding.

Step 1

Unboxing Your Bike

Step 2

Bike Fit Setup

Step 3

Tyre Pressure Setup

Step 4

Pre-Ride Check
